IWLAN AP, 300 Mbps, 2x M12, EEC, 1x wireless, 2xR-SMA, PLUG slot
1 419.84€
Включая НДС
Артикул: 6GK5774-1FY00-0TA0

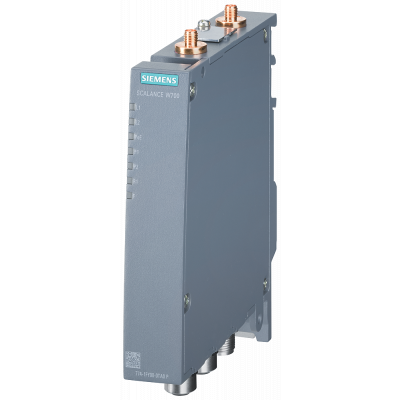

Точка доступа SCALANCE W774-1 M12 EEC IEEE 802.11A/B/G/H/N, 2.4/5Ггц, 300 Mбит/с, 2 X M12, 1X24VDC, IP20, POE SCALANCE W774-1 M12 EEC 1x wireless, 2x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, IP30, temperature range -30 °C - 65 °C, plug slot, for operation outside the US/Israel. Access Point with one built-in wireless interface for setting up wireless connections with iFeatures (iPCF/iPCF-MC) via removable data storage medium (plug). 1 unit.The devices can be used especially in harsh environments and are approved for use in rail and road transport. They are very compact and suitable for partition wall mounting.2x2 MIMO technology for stable wireless connections, secure wireless communication via PROFINET with PROFIsafe up to 300 Mbps. The devices comply with EN 50155 approval for railway applications, are shock- and vibration-resistant, and can also be used in environments with large temperature fluctuations through the coated printed circuit boards (conformal coating). Optional activation of additional functions (iFeatures) via removable data storage medium (plug). Security is increased by activation of Inter-AP Blocking in combination with a special plug.The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
Параметры
| Colour | - |
| Width | .026 |
| Height | .147 |
| Depth | .127 |
| Max. data transmission rate | 300.0 |
| Wall mounting | Да |
| Firewall | - |
| Managed | Да |
| Radio protocol | IEEE 802.11 a |
| Built-in | Нет |
| Ethernet | Да |
| Suitable for 19 inch mounting | Нет |
| Number of ports 10/100 Mbps LAN | 2 |
| Number of ports 1000 Mbps Mini GBIC | - |
| Connection for external antenna | Да |
| Bridge function | Да |
| Power over Ethernet | Да |
| Repeater function | Да |
| Encoding | IEEE 802.11 i |
| VPN-security | - |
| Degree of protection (IP) | Other |
| Ceiling mounting | Нет |
| Suitable for DIN rail (top hat rail) mounting | - |
| Flush-mounted installation | Нет |
| Number of ports 10 Gbps Mini GBIC | 0 |
| Pole fastening | Нет |
| Frequency band | 2.4 GHz and 5 GHz |
| Number of ports 10/100/1000 Mbps LAN | 0 |
| Socket outlet adapter | Нет |
| Number of AP's supported | - |
| Firewall throughput | 0.0 |
| Number of users | 28 |
