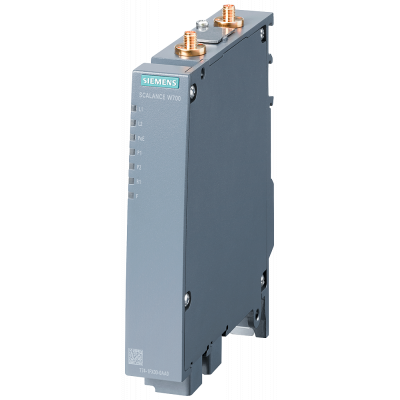

IWLAN AP, 300 Mbps, RJ45, 1x wireless, 2x R-SMA, plug slot
1 028.16€
Включая НДС
Артикул: 6GK5774-1FX00-0AA0
Точка доступа SCALANCE W774-1 RJ45 EEE 802.11A/B/G/H/N, 2.4/5Ггц, 300 Mбит/с, 2 X RJ45, 2X24VDC, IP20, POE SCALANCE W774-1 RJ45 1x wireless, 2x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x RJ45 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, terminal block, IP30, plug slot, for operation outside the US/Israel. Scalable Access Point with one built-in wireless interface for setting up wireless connections with iFeatures (iPCF/iPCF-MC) via removable data storage medium (plug). 1 unit.The devices are suitable for installation in control cabinets in industrial plants, such as suspended monorails and automatic guided vehicle systems, and enable wireless commissioning in the plant.Implementation of simple and cost-effective wireless machine networking. Flat, compact aluminum housing, shock and vibration resistant, suitable for stringent mechanical requirements. 2x2 MIMO technology for stable wireless connections, secure wireless communication via PROFINET with PROFIsafe up to 300 Mbps. Wireless access for service and maintenance, cost-effective replacement of cable lines, light and small design for efficient usage in automatic guided vehicle systems (AGV). Space-saving installation thanks to SIMATIC design. Optional activation of additional functions (iFeatures) via removable data storage medium (plug).The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
Параметры
| Colour | - |
| Width | .026 |
| Height | .147 |
| Depth | .127 |
| Max. data transmission rate | 300.0 |
| Wall mounting | Да |
| Firewall | - |
| Managed | Да |
| Radio protocol | IEEE 802.11 a |
| Built-in | Нет |
| Ethernet | Да |
| Suitable for 19 inch mounting | Нет |
| Number of ports 10/100 Mbps LAN | 2 |
| Number of ports 1000 Mbps Mini GBIC | - |
| Connection for external antenna | Да |
| Bridge function | Да |
| Power over Ethernet | Да |
| Repeater function | Да |
| Encoding | IEEE 802.11 i |
| VPN-security | - |
| Degree of protection (IP) | Other |
| Ceiling mounting | Нет |
| Suitable for DIN rail (top hat rail) mounting | - |
| Flush-mounted installation | Нет |
| Number of ports 10 Gbps Mini GBIC | 0 |
| Pole fastening | Нет |
| Frequency band | 2.4 GHz and 5 GHz |
| Number of ports 10/100/1000 Mbps LAN | 0 |
| Socket outlet adapter | Нет |
| Number of AP's supported | - |
| Firewall throughput | 0.0 |
| Number of users | 28 |
