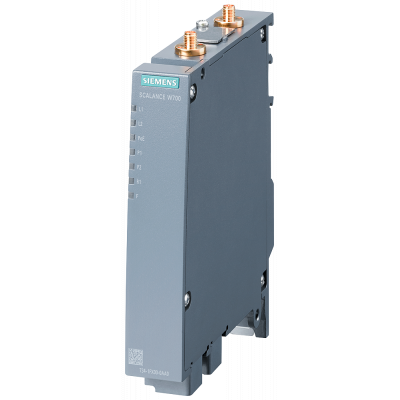

IWLAN Client, 300 Mbps, RJ45, 1x wireless, 2x R-SMA, PLUG slot

Клиентский модуль IWLAN SCALANCE W734-1 RJ45, IEEE 802.11A/B/G/H/N, 2.4/5Ггц, 300 Mбит/с, 2 X RJ45, 2X24VDC, IP20, SCALANCE W734-1 RJ45 1x wireless, 2x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x RJ45 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, IP30, plug slot, for operation outside the US/Israel. For managing wireless connection of up to eight connected devices with Industrial Ethernet connection. 1 unit.The devices are suitable for installation in the control cabinet as well as for indoor installation without control cabinets.Predictable data traffic (deterministic response) and defined response times on the wireless link as well as reliable wireless connection through use of the MIMO technology and monitoring of the wireless connection. PROFINET communication for real-time and redundancy requirements as well as option for transmission of safety-related data (safety) via PROFIsafe. In particular future-proof through conformity with WLAN standard IEEE 802.11 accepted worldwide as well as investment protection through flexible feature extensions with KEY-PLUG. Furthermore, saving costs through usage of a single wireless network. Additional characteristics are easy management via Web server and SNMP, fast device replacement in case of error through optional removable data storage medium C-PLUG as well as option for the realization of data-intensive applications, such as, for example video streaming. Compact and space-saving in the control cabinet because it can be mounted directly next to the SIMATIC S7-1500 or ET 200MP.The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.

Параметры

Colour	-
Width	.026
Height	.147
Depth	.127
Max. data transmission rate	300.0
Wall mounting	Да
Firewall	Нет
Managed	Да
Radio protocol	IEEE 802.11 a
Built-in	Нет
Ethernet	Да
Suitable for 19 inch mounting	Нет
Number of ports 10/100 Mbps LAN	2
Number of ports 1000 Mbps Mini GBIC	-
Connection for external antenna	Да
Bridge function	Да
Power over Ethernet	Да
Repeater function	Нет
Encoding	IEEE 802.11 i
VPN-security	Нет
Degree of protection (IP)	Other
Ceiling mounting	Нет
Suitable for DIN rail (top hat rail) mounting	-
Flush-mounted installation	Нет
Number of ports 10 Gbps Mini GBIC	0
Pole fastening	Нет
Frequency band	2.4 GHz and 5 GHz
Number of ports 10/100/1000 Mbps LAN	0
Socket outlet adapter	Нет
Number of AP's supported	-
Firewall throughput	0.0
Number of users	28
