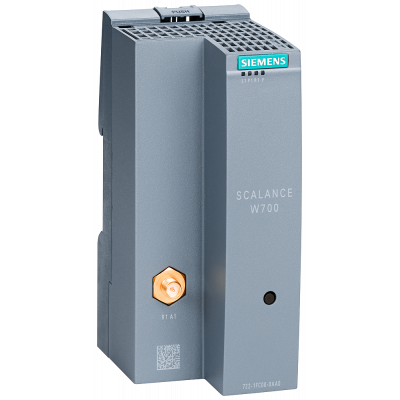

IWLAN Client, 150 Mbps, RJ45, 1x wireless, 1x R-SMA, iPCF
734.40€
Включая НДС
Артикул: 6GK5722-1FC00-0AA0
Клиентский модуль IWLAN SCALANCE W722-1 RJ45, IEEE 802.11A/B/G/H/N, 2.4/5Ггц, 150 Mбит/с, 1 X RJ45, 1X24VDC, IP20, SCALANCE W722-1 RJ45 1x wireless, 1x R-SMA antenna port, iPCF-MC, iFeatures support IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 150 Mbps, 1x RJ45, max. 100 Mbps, 24 V DC, terminal block, IP20, for operation outside the US/Israel. For managing wireless connection with features especially developed for the industry (PCF/PCF MC) of a device with Industrial Ethernet connection. 1 unit.The devices are suitable for installation in the control cabinet as well as for indoor installation without control cabinets.Secure wireless communication of up to 150 Mbps via PROFINET with PROFIsafe using features especially developed for the industry. Integration of industrial systems in WLAN infrastructures, cost-effective replacement of cable lines, lightweight and compact design for efficient use in automatic guided vehicle systems (AGV). Compact and space-saving in the control cabinet because it can be mounted directly next to the SIMATIC ET 200SP. Particularly future-proof through conformity with universally accepted WLAN standard IEEE 802.11. Predictable data traffic (deterministic response) and defined response times on the wireless link. PROFINET communication for real-time and redundancy requirements as well as transmission of safety-related data via PROFIsafe. Easy management via Web server and SNMP. Furthermore, saving costs through usage of a single wireless network.The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
Параметры
| Colour | - |
| Width | .05 |
| Height | .114 |
| Depth | .074 |
| Max. data transmission rate | 150.0 |
| Wall mounting | Нет |
| Firewall | Нет |
| Managed | Да |
| Radio protocol | IEEE 802.11 a |
| Built-in | Нет |
| Ethernet | Да |
| Suitable for 19 inch mounting | Нет |
| Number of ports 10/100 Mbps LAN | 1 |
| Number of ports 1000 Mbps Mini GBIC | - |
| Connection for external antenna | Нет |
| Bridge function | Да |
| Power over Ethernet | Нет |
| Repeater function | Нет |
| Encoding | IEEE 802.11 i |
| VPN-security | Нет |
| Degree of protection (IP) | IP20 |
| Ceiling mounting | Нет |
| Suitable for DIN rail (top hat rail) mounting | - |
| Flush-mounted installation | Нет |
| Number of ports 10 Gbps Mini GBIC | 0 |
| Pole fastening | Нет |
| Frequency band | 2.4 GHz and 5 GHz |
| Number of ports 10/100/1000 Mbps LAN | 0 |
| Socket outlet adapter | Нет |
| Number of AP's supported | - |
| Firewall throughput | 0.0 |
| Number of users | 28 |
