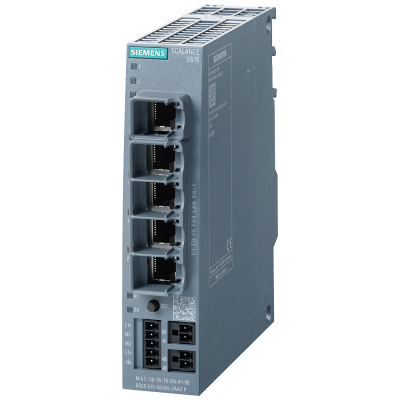

SCALANCE S615 Industrial Security Appliance, VPN, firewall, 5x RJ45

SCALANCE S615 LAN-ROUTER, F. PROTECTION OF DEVICES/ NETWORKS IN AUTOMATION AND PROTECTION OF INDUSTRIAL COMMUNICATION VIA VPN AND FIREWALL, FURTHER FUNCTIONS: ADDRESS CONVERSION (NAT/NAPT), CONNECTION TO SINEMA RC, 5-PORT SWITCH, 1XDIG. INPUT, 1XDIG. OUTPUT SCALANCE S615 transfer rate 10 Mbps, 100 Mbps, address translation (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. For protecting devices/networks in the automation devices and for safeguarding industrial communication by means of VPN and firewall.SCALANCE S is optimized for use in automation and industrial environments, and meets the specific requirements of automation systems, such as easy upgrades of existing systems, simple installation and minimal downtimes in the event of a fault.Protection of industrial automation networks against unauthorized access and setup of a DMZ (protected zone). This way the data exchange with other networks is made possible without having to grant direct access to the production network. Checking and filtering of data traffic by integrated firewall and thus protection against incorrect operation, prevention of impermissible accesses and avoiding disruptions and communication overload. Trouble-free integration into existing networks without repeated configuration of terminal nodes or setting up new IP subnets. Comprehensive protection thanks to flexible cell protection concept. The devices are rugged and designed for industrial usage.The accessories include among others comprehensive software, removable media, FastConnect plug-in connectors, stripping tools, plug-in transceivers and cables that perfectly top off the system.

Параметры

Mounting method	DIN rail (top hat rail)
Firewall	Нет
Radio protocol	-
UMTS	Нет
Analogue	-
Ethernet	-
ISDN	-
xDSL	Нет
Number of ports WAN	0
Number of module slots	-
Protocol	-
Number of ports 10/100 Mbps LAN	5
Empty chassis	Нет
USB	-
Number of ports Voice	-
VPN	Да
Degree of protection (IP)	IP20
LTE	Нет
Frequency band	-
Number of ports 10/100/1000 Mbps LAN	5
