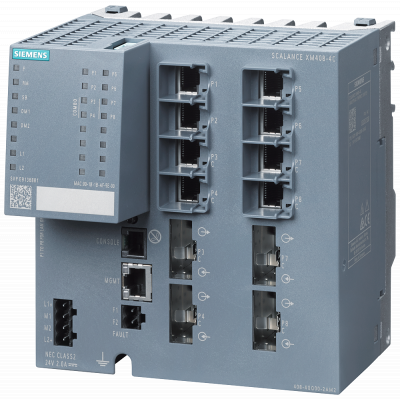

SCALANCE XM408-4C, MANAGED MODULAR IE SWITCH, 8 X 10/100/1000 MBIT/S RJ45, 4 X 100/1000 MBIT/S ST-/SC- PLUGGABLE AS COMBO PORTS, 8 PORTS USABLE IN TOT
2 937.60€
Включая НДС
Артикул: 6GK5408-4GP00-2AM2
SCALANCE XM408-4C, MANAGED MODULAR IE SWITCH, 8 X 10/100/1000 MBIT/S RJ45, 4 X 100/1000 MBIT/S ST-/SC- PLUGGABLE AS COMBO PORTS, 8 PORTS USABLE IN TOTAL, EXPANDABLE UP TO 24 PORTS ELECTRICAL OR OPTICAL, LAYER 3 WITH KEY PLUG AVAILABLE MOUNTING DIN-/S7-PROFILE-RAIL PROFINET-IO DEVICE, REDUNDANCY FUNCTIONS, OFFICE FEATURES (RSTP, VLAN, IGMP,..), C-PLUG IN SCOPE OF SUPPLY Switch to the future - SCALANCE X.
Параметры
| Mounting method | DIN rail (top hat rail) |
| Width | 140.0 |
| Height | 147.0 |
| Depth | 125.0 |
| Number of ports 100 Mbps SC | - |
| Number of ports 1000 Mbps RJ45 | 0 |
| Number of ports 100 Mbps ST | - |
| Ethernet | Да |
| Number of ports 10/100 Mbps RJ45 | 0 |
| Number of ports 1000 Mbps SC (SX) | 4 |
| Number of ports 1000 Mbps SC (LX) | 4 |
| Number of module slots | 2 |
| Number of max. stackable switches | 0 |
| Number of ports 10/100 Mbps M12 | 0 |
| Number of ports 10/100/1000 Mbps RJ45 | 8 |
| Number of ports 1000 Mbps GBIC | 0 |
| Number of ports 1000 Mbps Mini GBIC | 0 |
| Number of combination-ports RJ45/Mini GBIC | 4 |
| Layer 2 | Да |
| Layer 3 | Да |
| Manageable | Да |
| Degree of protection (IP) | IP20 |
| Number of other ports | - |
| Number of ports 100/1000 Mbps Mini GBIC | - |
| Number of ports 10 Gbps Mini GBIC | 0 |
| Power over Ethernet | Other |
| Number of ports PoE | 16 |
| Max. PoE power | 30 |
| Number of ports 100 Mbps POF | 0 |
| Number of ports 1000 Mbps POF | - |
| Number of ports 40 Gbps Mini GBIC | 0 |
| Number of ports 100 Gbps Mini GBIC | 0 |
| Number of ports 10 Gbps RJ45 | 0 |
