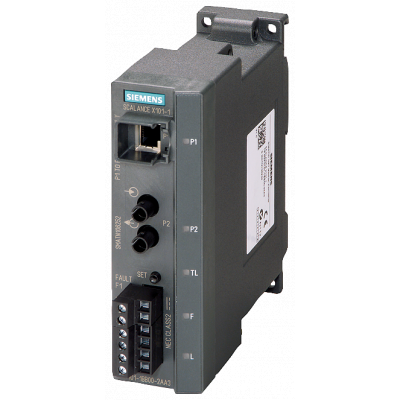

SCALANCE X101-1, IE media converter, 10/100 Mbps RJ45, 100 Mbps MM BFOC
440.64€
Включая НДС
Артикул: 6GK5101-1BB00-2AA3
SIMATIC NET, SCALANCE X101-1, НЕУПРАВЛЯЕМЫЙ МЕДИА-ПРЕОБРАЗОВАТЕЛЬ ДЛЯ IE, 1 X 10/100МБИТ/С RJ45 ПОРТ, 1 X 100МБИТ/С МУЛЬТИМОДОВЫЙ BFOC, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ НАСТРОЙКИ, РЕЗЕРВИРОВАННОЕ ПИТАНИЕ, PROFINET-СОВМЕСТИМОЕ Designed for use in the control cabinet for the implementation of fiber-optic on copper cables. Single, remote terminal devices or network segments can be linked via the optical path of the media converters. Two media converters also make integration of an optical path into a redundant ring possible, as well as the installation of media converters in a standby link.Industry-standard RJ45 port with additional retaining collar. Space-saving installation in the control cabinet through compact design in SIMATIC S7-300 format. Wiring without a patch field is possible with quick mounting system of connectors and cables. Reliable operation, even in the event of a power supply failure, through redundant configuration.
Параметры
| Width | 40.0 |
| Height | 125.0 |
| Depth | 124.0 |
| Construction type | Single device |
| Number of ports 10 Mbps BNC | 0 |
| Number of ports 10 Mbps AUI | 0 |
| Number of ports 10 Mbps of ST | 0 |
| Number of ports 100 Mbps RJ45 | 0 |
| Number of ports 100 Mbps SC | 0 |
| Number of ports 1000 Mbps RJ45 | 0 |
| Number of ports 10 Mbps of SC | 0 |
| Number of ports 100 Mbps ST | 1 |
| Managed | Нет |
| Voltage type of supply voltage | DC |
| Ethernet | Нет |
| Fast Ethernet | Да |
| Gigabit Ethernet | Нет |
| Number of ports 10 Mbps RJ45 | 0 |
| Number of ports 10 Mbps VF-45 | 0 |
| Number of ports 10/100 Mbps RJ45 | 1 |
| Number of ports 100 Mbps VF-45 | 0 |
| Number of ports 1000 Mbps SC (SX) | 0 |
| Number of ports 1000 Mbps SC (LX) | 0 |
| Number of ports GIBC (SX) | 0 |
| Number of ports GIBC (LX) | 0 |
| Suitable for 19 inch mounting | - |
| Rail mounting possible | Да |
| Number of ports 10 Gbps LC (LX) | 0 |
| Number of ports 10 Gbps LC (SX) | 0 |
| Number of ports 10 Mbps MTRJ | 0 |
| Number of ports 10/100/1000 Mbps RJ45 | - |
| Number of ports 1000 Mbps LC (LX) | 0 |
| Number of ports 1000 Mbps LC (SX) | 0 |
| Power over Ethernet | - |
| Wall mounting/direct mounting | Да |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 18 |
| Number of ports 10 Gbps SC (LX) | 0 |
| Number of ports 10 Gbps SC (SX) | 0 |
| Number of ports Mini-GBIC (LX) | 0 |
| Number of ports Mini-GBIC (SX) | 0 |
