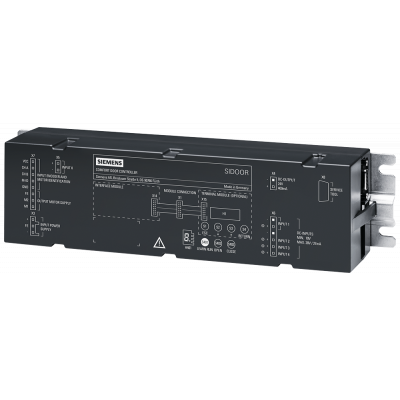

SIDOOR ATD430W With PROFINET interface For industrial applications

SIDOOR AT430W контрольный модуль для дверей станков. Макс. вес двери 600кг. PROFINET IO класс C. 2xRJ45, EN13849-1, EN953 The impressive SIDOOR controllers feature one-button commissioning and thus certified safety according to EN ISO 14120 (force, energy) and EN ISO 13849-1 PL d. Furthermore, dual-channel profile switching for robotic loading and two-hand operation can be realized easily and safely. The PROFINET connection to a SIMATIC or SINUMERIK makes it possible to implement innovative maintenance concepts with MindSphere. The SIDOOR controllers for industrial plant and machine protective doors, cold room gates and escape tunnel doors are available in PROFINET, PROFIBUS and RELAY versions. SIDOOR controllers are also available for elevator doors and gates, interior railway doors and platform screen doors. The SIDOOR DIN RAIL HOLDER is available as an accessory for mounting in the control cabinet. The SIDOOR SOFTWARE KIT allows firmware updates to be imported that provide support in precisely recording the traversing profile, as well as the option of reading and writing the parameter set. The SITOP PSU8200 13 A/36 V (plus secondary-side line protection 5SY4108-7) or the SIDOOR NT40 are available as recommended power supply units. The SIDOOR TRANSFORMER can be used for masses of up to 400 kg to be moved, depending on the dynamic response required. For masses of up to 700 kg to be moved, the SIDOOR MDG3, MDG4 and MDG5 motors optimized for the industrial environment as well as the SIDOOR M3, M4 and M5 standard motor versions have been approved.

Параметры

Model	Control device
Max. door/gate width	5000.0
Nominal electricity consumption	-
Serial interface	Да
Type of power supply	External
Rated frequency	-
Nominal power consumption	145.0
Manufacturer specific system components required	Да
Max. door/gate weight	600
Control exits	Да
Control inputs	Да
Supply voltage AC	-
Degree of protection (IP)	IP20
With communication interface	Нет
Max. output current DC	0.4
Supply voltage DC	36.0
Input voltage per DC input	10
Input current per DC input	0.009
Max. opening cycles per hour	180.00
