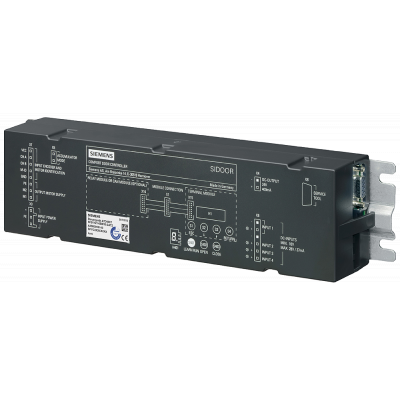

SIDOOR ATD400T relay With relay outputs For interior railway doors

SIDOOR ATD400T relay With relay outputs For interior railway doors. 6FB11210BM133AT2
548.23€
Включая НДС
Артикул: 6FB1121-0BM13-3AT2
SIDOOR AT400T контрольный модуль с релейными выходами для внутренних дверей вагона поезда. Макс. вес двери 400кг. 36VDC, 1*RS485, 4*DI, 3*реле, 1*24VDC вывод, -20°C .. +50°C, EN 50155, EN 50121-3-2, EN 45545-2, EN 61373 The SIDOOR Controller is characterized by one-button operation for complete commissioning of the certified safety attained according to EN 14752 (power, energy), EN 50155 (electrical safety), EN 50121-3-2 (EMV) and IEC 61373 (vibration/shock). Furthermore, the current fire protection standard for components in railway vehicles, EN 45545-2, HL3 (Hazard Level 4) is fulfilled. The integrated Push-to-Open and Push-to-Close function allows a maneuvering of the door by hand by more than 2 cm in the opening/closing direction to be detected automatically by the controller as a DOOR OPEN/DOOR CLOSED command. The SIDOOR Controllers for interior railway doors are available as a RELAY variant. There are also SIDOOR Controllers for platform screen doors and for gap bridging in railway applications. The door drive for interior railway doors comprises a control device and a geared motor. The SIDOOR control device can be used in combination with the SIDOOR MDG180 L DIN EN 45545-2 or SIDOOR MDG180 R DIN EN 45545-2 motor, depending on the required dynamic response for a mass of up to 180 kg to be moved. The SIDOOR SOFTWARE KIT is available as accessory and allows firmware updates to be imported that provide support in precisely recording the traversing profile, as well as the option of reading and writing the parameter set.

Параметры

Model Control device
Max. door/gate width 4000.0
Nominal electricity consumption -
Serial interface Да
Type of power supply Internal
Rated frequency -
Nominal power consumption 80.0
Manufacturer specific system components required Да
Max. door/gate weight 180
Control exits Да
Control inputs Да
Supply voltage AC -
Degree of protection (IP) IP20
With communication interface Нет
Max. output current DC 0.4
Supply voltage DC 24.0
Input voltage per DC input 10
Input current per DC input 0.009
Max. opening cycles per hour 180.00
