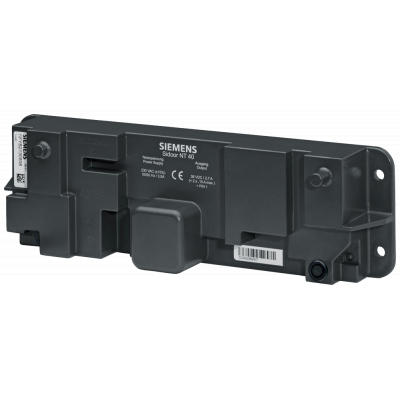

SIDOOR NT40 For input voltage 230 (±15 %) V AC 50/60 Hz incl. supply line with grounding plug (CEE 7/4)
152.64€
Включая НДС
Артикул: 6FB1112-0AT20-3PS0
SIDOOR NT40 импульсный стабилизатор напряжения. Входное напряжение 230 VAC (+-15%) 50/60Hz. Выходное напряжение 36VDC, IP54, включая кабель питания с вилкой (CEE 7/4) длиной 2м, включая кабель для подключения к контроллеру длиной 1,5м, -20°C .. +50°C The SIDOOR NT40 switched mode power supply is operated with 230 V AC (± 15 %), 50/60 Hz, to power a SIDOOR door controller. It is characterized by its particular suitability for door systems with high dynamic masses of up to 700 kg at maximum performance. While the power supply unit supplies a voltage of 36 V DC (±3 %) SELV at the output side at a rated output power < 100 W, the device can briefly (max. 2 s) deliver a current of 15 A (corresponds to a brief power output of 540 W) to allow a fast acceleration/braking process for the doors by the control device.
Параметры
| Model | Other |
| Max. door/gate width | - |
| Nominal electricity consumption | - |
| Serial interface | - |
| Type of power supply | - |
| Rated frequency | 50 |
| Nominal power consumption | - |
| Manufacturer specific system components required | Да |
| Max. door/gate weight | - |
| Control exits | Да |
| Control inputs | Да |
| Supply voltage AC | 230 |
| Degree of protection (IP) | IP54 |
| With communication interface | - |
| Max. output current DC | - |
| Supply voltage DC | - |
| Input voltage per DC input | - |
| Input current per DC input | - |
| Max. opening cycles per hour | - |
