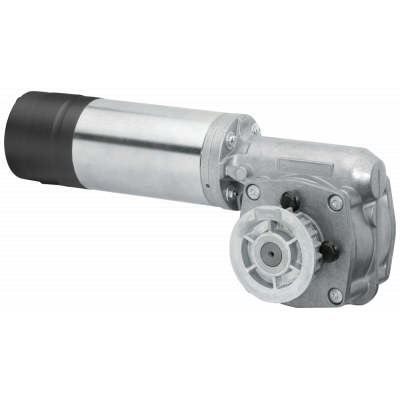

SIDOOR M4 L With driven gear on the left

SIDOOR M4 L мотор-редуктор, шестерня слева, макс. вес двери 400кг, длина кабеля 1,5м, 30VDC, -20° to +50°C The SIDOOR Basic drives are characterized by an integrated motor connection cable with a cable length of 1.5 m, allowing a direct connection with the SIDOOR control device. Additionally, the permanently fixed belt pulley provided for the output shaft of the gear unit is optimized for toothed belt transmission with its S8M toothing. The SIDOOR Basic drives are divided into the performance classes M2 up to 120 kg (for AT40 only), M3 up to 180 kg, M4 up to 400 kg, and M5 up to 600 kg. The SIDOOR Advanced drives MDG3/MDG4/MDG5 are also available for the ATD4xxW controllers. A wide selection of geared motors ensures that there is always a left and right geared motor variant available. All necessary mechanical components such as guide pulleys, mounting brackets, door clutch holders, and toothed belts are available accordingly as accessories for doors with toothed belt transmission.

Параметры

Height	115.0
Diameter	63.0
Length	275.0
Max. door/gate weight	400
Nominal operating current	4
Degree of protection (IP)	-
Supply voltage DC	-
Pinion position	Left
Gear ratio	15
Max. speed	0.75
