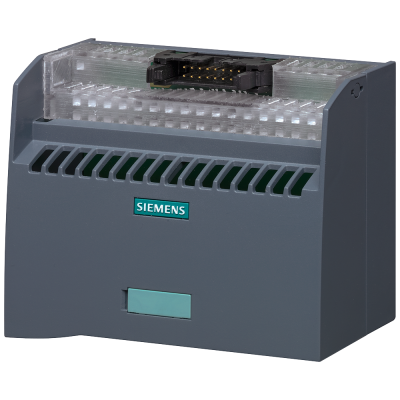

Connection module dig. IOs, TP3 3-wire connection, 8 I/O, screw / switch, LED

Терминальный блок TP3 с разъединительными клеммами для каждого канала, 8 каналов и 2X10 клемм питания, тип: винтовые клеммы со светодиодной индикацией, 1 шт. в упаковке, 16-полюсный IDC-разъём для кабеля The TP3s connection module for a 3-wire connection with 8 channels and potential connection with screw terminals, dip switches for disconnecting the signals and LEDs for signalling forms the interface between the connection cables of the peripherals and the SIMATIC S7 that come in from the field. This is mounted on the DIN rail and, thanks to its functionality with screw terminals, is precisely adapted to the respective task. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.

Параметры

Mounting method	DIN rail (top hat rail) 35 mm
Colour	Grey
Rated voltage	50
Colour lamp	Other
Length	76.0
Operation temperature	0
Inflammability class of insulation material acc. with UL94	V1
Width/grid dimension	57.0
Height at lowest possible mounting height	60.0
Closing plate required	Нет
Type of electrical connection 1	Plug-in connection
Type of electrical connection 2	Screw connection
With PE connection	Нет
With shield connection	Нет
With power supply function	Да
LED switching for	No
Number of levels	1
Number of clamp positions per level	1
Internally connected stages	Нет
Cross connectable	Нет
Disconnect function	Да
Connectable conductor cross section solid-core	-
Connectable conductor cross section fine-strand with cable end sleeve	0.5
Connectable conductor cross section fine-strand without cable end sleeve	-
Connectable conductor cross section multi-wired	0.5
Material insulation body	Other
Connection position	Above
Rated current In	1
Explosion-tested version 'Ex e'	Нет
