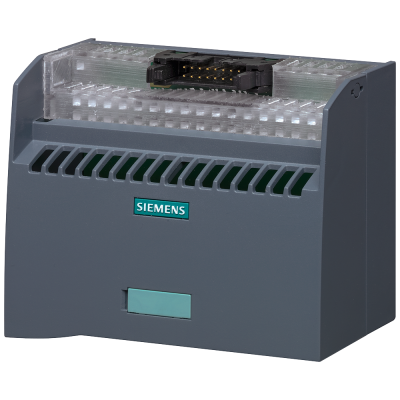

Connection module dig. IOs, TPOo optocoupler module, 8 O, screw, LED

Терминальный блок TP00 с оптической развязкой =24 В, выход 8 НО =24 В/4A, стойкие к КЗ и перегрузке, со светодиодной индикацией, винтовые клеммы, 1 шт. в упаковке, 16-полюсный IDC-разъём для кабеля The TPOo connection module with optocoupler and potential feed terminals (24VDC) for the connection of 8 digital outputs (24VDC) for potential adaption/isolation, contact designed as normally open contact, with screw terminals and LED for signalling forms the interface between the connection cables of the peripherals supplied from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with screw terminals, is precisely adapted to the respective task. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.

Параметры

Mounting method	DIN rail (top hat rail) 35 mm
Colour	Grey
Rated voltage	50
Colour lamp	Other
Length	76.0
Operation temperature	0
Inflammability class of insulation material acc. with UL94	V1
Width/grid dimension	130.0
Height at lowest possible mounting height	60.0
Closing plate required	Нет
Type of electrical connection 1	Plug-in connection
Type of electrical connection 2	Screw connection
With PE connection	Нет
With shield connection	Нет
With power supply function	Да
LED switching for	No
Number of levels	1
Number of clamp positions per level	1
Internally connected stages	Нет
Cross connectable	Нет
Disconnect function	Нет
Connectable conductor cross section solid-core	-
Connectable conductor cross section fine-strand with cable end sleeve	0.5
Connectable conductor cross section fine-strand without cable end sleeve	-
Connectable conductor cross section multi-wired	0.5
Material insulation body	Other
Connection position	Above
Rated current In	1
Explosion-tested version 'Ex e'	Нет
