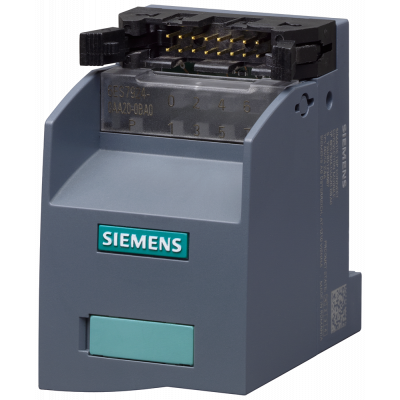

Connection module dig. IOs, TP1 1-wire connection, 8 I/O, screw, LED

Терминальный блок TP1 8 каналов и 2Х2 клеммы для питания, тип: винтовые клеммы со светодиодной индикацией, 1 шт. в упаковке, 16-полюсный IDC-разъём для кабеля The TP1 connection module for a 1-wire connection with 8 channels and a potential connection with screw terminals and LED for signalling forms the interface between the connection cables of the peripherals coming from the field and the SIMATIC S7. This is mounted on the DIN rail and is exactly adapted to the respective task thanks to its functionality with screw terminals. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.

Параметры

Mounting method	DIN rail (top hat rail) 35 mm
Colour	Grey
Rated voltage	50
Colour lamp	Other
Length	58.0
Operation temperature	0
Inflammability class of insulation material acc. with UL94	V1
Width/grid dimension	40.0
Height at lowest possible mounting height	50.0
Closing plate required	Нет
Type of electrical connection 1	Plug-in connection
Type of electrical connection 2	Screw connection
With PE connection	Нет
With shield connection	Нет
With power supply function	Да
LED switching for	No
Number of levels	1
Number of clamp positions per level	1
Internally connected stages	Нет
Cross connectable	Нет
Disconnect function	Нет
Connectable conductor cross section solid-core	-
Connectable conductor cross section fine-strand with cable end sleeve	0.5
Connectable conductor cross section fine-strand without cable end sleeve	-
Connectable conductor cross section multi-wired	0.5
Material insulation body	Other
Connection position	Above
Rated current In	1
Explosion-tested version 'Ex e'	Нет
