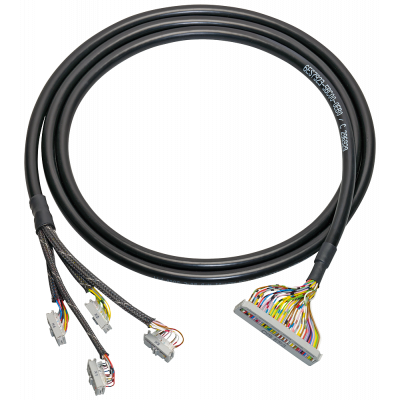

Round cable 50-pin, 4 x 16 pole and 1 x 50 pole with IDC connector, L= 3m

Неэкранированный соединительный кабель для SIMATIC S7-300/1500, 0.14 кв. мм, между специальным фронтальным соединителем 4 X 16 полюсным и терминальным блоком, 1 X 50 полюсный с IDC-разъёмами, длина 3,0 м The 50-pin round cable (unshielded) with a length of 3m is assembled on the side of the front connector module with 4 x 16-pin IDC plugs and on the side of the connection module with a 50-pin IDC plug. This pre-assembled cable enables a trouble-free and safe signal flow. Thus, even complex installations remain manageable and can be checked in the shortest possible time, which makes maintenance and expansion affordable. This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are connected to the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via connecting cable and front plug-in module.

Параметры

Function	PLC - other devices
Number of poles	50
Length	3.0
Type of electrical connection, box-sided	Connection plug board
Type of electrical connection, field-sided	Connection plug board
Suitable for input board PLC	Да
Suitable for output card PLC	Да
Suitable for digital signals	Да
Suitable for analogue signals	Нет
