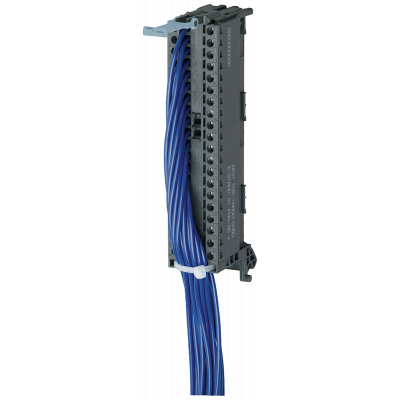

Front connector 40pole w. 20 single cores UL/CSA app. f. SIMATIC S7-1500 L=3,2m

ФРОНТШТЕКЕР ДЛЯ SIMATIC S7-1500, 40-ПОЛЮСНЫЙ (6ES7592-1AM00-0XB0) C 20 ОДНОЖИЛЬНЫМИ КАБЕЛЯМИ СЕЧЕНИЕМ 0,5 КВ.ММ (1-20) ТИП КАБЕЛЯ - СЕРТИФИЦИРОВАН ПО UL/SCA, ВИНТОВОЕ ПОДКЛЮЧЕНИЕ, ДЛИНА КАБЕЛЕЙ = 3,2 М The pre-assembled 40-pole front connector with 20 single UL/CSA type wires, conductor cross-section 0.5qmm, with a length of 3.2m in screw version is intended for connection to a digital I/O module of the SIMATIC S7-1500. This is plugged onto the module to be wired instead of the front connector. This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered individual wires.This front connector with single wires is part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to a 50% lower wiring effort, sources of errors in cabling can be significantly reduced.

Параметры

Function	PLC - other devices
Number of poles	40
Length	3.2
Type of electrical connection, box-sided	Screw connection
Type of electrical connection, field-sided	Other
Suitable for input board PLC	Да
Suitable for output card PLC	Да
Suitable for digital signals	Да
Suitable for analogue signals	Нет
