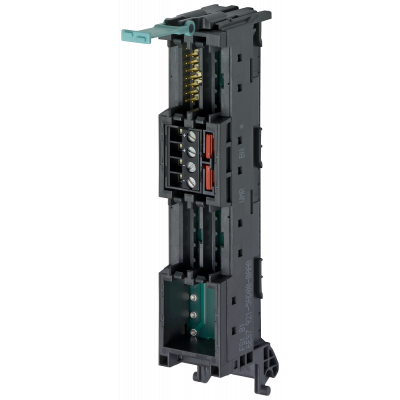

Front connector module SIMATIC S7-1500, dig. Os 2A, 16-p. cable connect, screw
67.42€
Включая НДС
Артикул: 6ES7921-5AD00-0AA0
Специальный фронтальный соединитель с 1X16-полюсным IDC-разъёмом для модулей дискретных выходов 2 А для S7-1500, питание через винтовые клеммы The front connector module for SIMATIC S7-1500 with screw terminals for potential feed to connect 2x16-pole cables represents a modified front connector for connection to a digital I/O module. This is plugged into the module to be wired instead of the front connector. Here the cables are plugged in and connected to the connection module.This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module.
Параметры
| Mounting method | Direct mounting |
| Colour | Black |
| Rated voltage | 24 |
| Number of poles | 40 |
| Length | - |
| Operation temperature | 0 |
| Number of clamp positions per pole | - |
| Inflammability class of insulation material acc. with UL94 | - |
| Width/grid dimension | - |
| Height at lowest possible mounting height | - |
| Closing plate required | Нет |
| Type of electrical connection 1 | Plug-in connection |
| Type of electrical connection 2 | Screw connection |
| Drill hole distance centrically | - |
| Transparent | Нет |
| Connectable conductor cross section solid-core | - |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25 |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5 |
| Connectable conductor cross section multi-wired | 0.5 |
| Material insulation body | Other |
| Connection position | Above |
| Rated current In | 1 |
| Explosion-tested version 'Ex e' | Нет |
