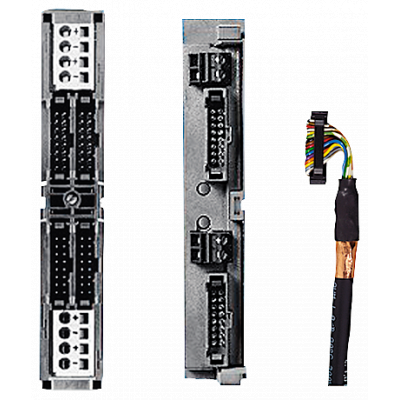

Front connector module SIMATIC S7-300, dig. IOs 2A, 16-p. cable connect, screw

SIMATIC S7-300, ФРОНТ. СОЕДИНИТЕЛЬ SIMATIC TOP CONNECT ДЛЯ МОДУЛЕЙ ВЫВОДА ДИСКР. СИГНАЛОВ (ДО 2А НА КАНАЛ), ПОДКЛ. ВНЕШНИХ ЦЕПЕЙ ВИТЫМ ЛЕНТОЧНЫМ КАБЕЛЕМ, ПОДКЛ. ПИТАНИЯ ЧЕРЕЗ ТЕРМИНАЛЬНЫЙ БЛОК С КОНТАКТАМИ ПОД ВИНТ The front connector module for SIMATIC S7-300 with screw terminals for potential feed to connect a 16-pole cable represents a modified front connector for connection to a digital 2 Ampere output module. This is plugged into the module to be wired instead of the front connector. Here the cables are plugged in and connected to the connection module.This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module.

Параметры

Mounting method	Direct mounting
Colour	Black
Rated voltage	60
Number of poles	20
Length	-
Operation temperature	0
Number of clamp positions per pole	-
Inflammability class of insulation material acc. with UL94	-
Width/grid dimension	-
Height at lowest possible mounting height	-
Closing plate required	Нет
Type of electrical connection 1	Plug-in connection
Type of electrical connection 2	Screw connection
Drill hole distance centrically	-
Transparent	Нет
Connectable conductor cross section solid-core	-
Connectable conductor cross section fine-strand with cable end sleeve	0.25
Connectable conductor cross section fine-strand without cable end sleeve	0.25
Connectable conductor cross section multi-wired	0.25
Material insulation body	Other
Connection position	Above
Rated current In	1
Explosion-tested version 'Ex e'	Нет
