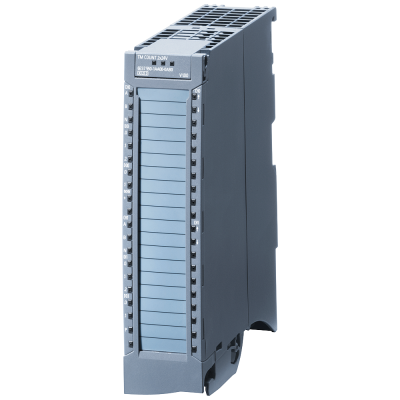

SIMATIC S7-1500 TM Count 2x24V 2 channels, up to 200 kHz
567.22€
Включая НДС
Артикул: 6ES7550-1AA00-0AB0
SIMATIC S7-1500, ТЕХНОЛОГИЧЕСКИЙ МОДУЛЬ TM COUNT 2X24V, СЧЁТНЫЙ МОДУЛЬ, 2 КАНАЛА ДЛЯ ИНКРЕМЕНТАЛЬНЫХ ЭНКОДЕРОВ =24 В ИЛИ ИМПУЛЬСОВ =24 В, 3 ДИСКРЕТНЫХ ВХОДА (DI), 2 ДИСКРЕТНЫХ ВЫХОДА (DQ) НА КАНАЛ The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Technology modules provide hardware-related signal preprocessing for high-speed counting, exact measuring, position detection and pulse width modulation for various encoders and actuators and the control of stepper motor drives and servo drives via PTI interface.
Параметры
| Width | 35.0 |
| Height | 147.0 |
| Depth | 129.0 |
| Suitable for safety functions | Нет |
| Redundancy | Нет |
| Number of functions | - |
| Suitable for counting | Да |
| Suitable for weighting | Нет |
| Suitable for welding control | Нет |
| Suitable for pressure control | Нет |
| Suitable for NC | Нет |
| Suitable for SSI | Нет |
| Function electronic positioning available | Да |
| Suitable for CNC | Нет |
| Suitable for incremental data detection | Да |
| Suitable for detection absolute value | - |
| Flux controller possible | Нет |
| Suitable for flux measurement | Нет |
| Suitable for path controller | Нет |
| Suitable for cam controller | Нет |
| Suitable for flying saw | Нет |
| Suitable for multi-axis control | Нет |
| Single-axis controller possible | Нет |
| Suitable for multi-axis positioning | Нет |
| Single-axis positioning possible | Нет |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Suitable for temperature control | Нет |
| SIL according to IEC 61508 | - |
