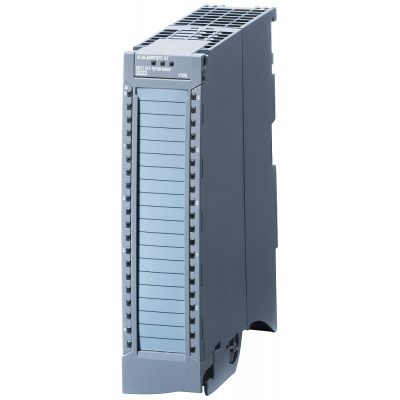

SIMATIC S7-1500 AI 8xU/I HS 35 mm, with operating mode oversampling Incl. power supply element, shield bracket, and shield terminal
829.01€
Включая НДС
Артикул: 6ES7531-7NF10-0AB0
SIMATIC S7-1500, МОДУЛЬ АНАЛОГОВЫХ ВХОДОВ AI 8 X U/I HS, СИГНАЛЫ: ТОК/НАПРЯЖЕНИЕ, РАЗРЕШЕНИЕ 16 БИТ, ТОЧНОСТЬ 0.3 %, 8 КАНАЛОВ В ГРУППАХ ПО 8, НАПРЯЖЕНИЕ ОБЩЕГО РЕЖИМА ПРИБЛ. 10 В, ДИАГНОСТИКА, ДИАГНОСТИЧЕСКИЕ ТРЕВОЖНЫЕ СООБЩЕНИЯ, 8 КАНАЛОВ ЗА 0,125 МС The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. The scalable configuration of an ET 200MP station is ensured by the wide range of signal modules. A large number of digital and analog input and output modules are available. This ensures the universal applicability of the system.
Параметры
| Width | 35.0 |
| Height | 147.0 |
| Depth | 129.0 |
| Suitable for safety functions | Нет |
| Number of analogue inputs | 8 |
| Number of analogue outputs | 0 |
| Input, current | Да |
| Input, voltage | Да |
| Input, resistor | Нет |
| Input, resistance thermometer | Нет |
| Input, thermocouple | Нет |
| Input signal, configurable | Да |
| Output, current | - |
| Output, voltage | - |
| Output signal configurable | - |
| Resolution of the analogue inputs | 16 |
| Resolution of the analogue outputs | - |
| Type of electric connection | Other |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Analogue inputs configurable | Да |
| Analogue outputs configurable | - |
| SIL according to IEC 61508 | - |
