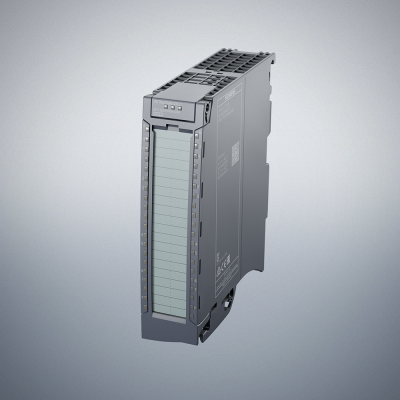

SIMATIC S7-1500 DQ 16x 230 V AC/2 A ST (relay) 35 mm
402.38€
Включая НДС
Артикул: 6ES7522-5HH00-0AB0
SIMATIC S7-1500, МОДУЛЬ ДИСКРЕТНЫХ ВЫХОДОВ DQ 16 X 230VAC/2A РЕЛЕ, 16 КАНАЛОВ В ГРУППАХ ПО 2, 4 A НА ГРУППУ, ДИАГНОСТИКА, ЗАМЕЩАЮЩЕЕ ЗНАЧЕНИЕ The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. The scalable configuration of an ET 200MP station is ensured by the wide range of signal modules. A large number of digital and analog input and output modules are available. This ensures the universal applicability of the system.
Параметры
| Width | 35.0 |
| Height | 147.0 |
| Depth | 129.0 |
| Input current at signal 1 | - |
| Suitable for safety functions | Нет |
| Number of digital inputs | 0 |
| Number of digital outputs | 16 |
| Time delay at signal exchange | - |
| Voltage type of supply voltage | DC |
| Type of voltage (input voltage) | - |
| Redundancy | Да |
| Output current | 2.0 |
| Short-circuit protection, outputs available | Нет |
| Type of digital output | Relay |
| Type of electric connection | - |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Permitted voltage at output | - |
| Permitted voltage at input | - |
| Type of output voltage | - |
| Digital inputs configurable | - |
| Digital outputs configurable | Да |
| SIL according to IEC 61508 | - |
