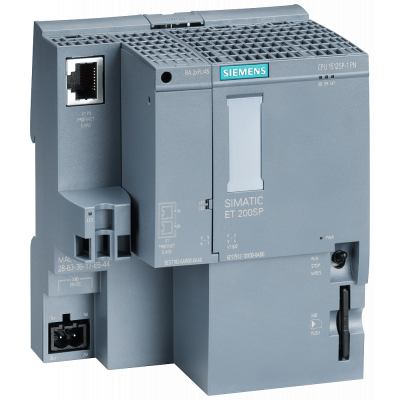

SIMATIC ET 200SP CPU 1512SP-1 PN
986.57€
Включая НДС
Артикул: 6ES7512-1DK01-0AB0
SIMATIC DP, ЦЕНТРАЛЬНЫЙ ПРОЦЕССОР CPU 1512SP-1 PN ДЛЯ ET 200SP, РАБОЧАЯ ПАМЯТЬ 200 КБ ДЛЯ ПРОГРАММЫ И 1 МБ ДЛЯ ДАННЫХ, 1 ИНТЕРФЕЙС - PROFINET IRT С 3Х-ПОРТОВЫМ КОММУТАТОРОМ, 48 НС НА БИТОВУЮ ОПЕРАЦИЮ, НЕОБХОДИМА КАРТА ПАМЯТИ SIMATIC MC, ДЛЯ ПОРТОВ 1 И 2 НЕОБХОДИМ СЕТЕВОЙ АДАПТЕР BA The SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system. With its small footprint, it is particularly well-suited for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. The SIMATIC ET 200SP can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a very comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available. For price-sensitive applications, there are modules with basic functions (BA). The advantage of the ET 200SP system is in its ease of application, such as through the free selection of the PROFINET connection technology via the BusAdapter, the tool-free wiring by means of push-in technology, improved accessibility of the wiring due to a new arrangement of the spring releases, in addition to the associated conductor aperture and the channel-precise diagnostic functions. The availability and productivity of the machine are ensured by the capability of swapping modules and terminal boxes during operation, the so-called "hot swapping". Interface modules with integrated CPU and PROFINET connections are available for SIMATIC ET 200SP. The functionality corresponds to that of a CPU of the SIMATIC S7-1500 family. A SIMATIC Memory Card is required for the operation of this module.
Параметры
| Width | 100.0 |
| Height | 117.0 |
| Depth | 75.0 |
| Suitable for safety functions | Нет |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | - |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Да |
| Type of voltage (input voltage) | DC |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Да |
| Supporting protocol for PROFIBUS | Да |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Number of slots | - |
| With pluggable modules, digital I/O | Да |
| With pluggable modules, analogue I/O | Да |
| With pluggable modules, communication modules | Да |
| With pluggable modules, function and technology modules | Да |
| With pluggable modules, central modules | Да |
| With pluggable modules, others | Да |
| With potential separation | - |
| With integrated power supply | - |
| Type of electric connection | - |
| Rail mounting possible | Да |
| With bus coupler for modular station connection | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Да |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | - |
| Front build in possible | - |
| Rack-assembly possible | - |
| Wall mounting/direct mounting | Да |
| Input voltage at AC 50 Hz | - |
| Input voltage at AC 60 Hz | - |
| Input voltage at DC | 19.2 |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | - |
| Max. input current AC 50 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | - |
| Performance level acc. EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Type of output voltage | - |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | None |
