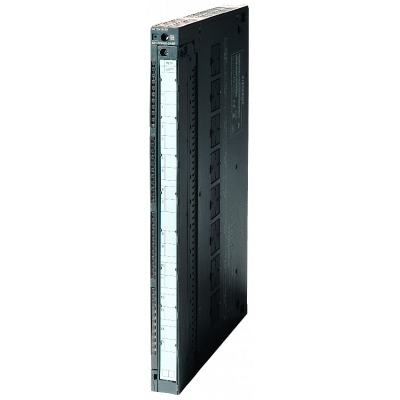

SIMATIC S7-400 SM 431, AI U/I/R 8x14 bit
1 423.37€
Включая НДС
Артикул: 6ES7431-1KF10-0AB0
SIMATIC S7-400, SM 431, МОДУЛЬ ВВОДА АНАЛОГОВЫХ СИГНАЛОВ: ОПТОЭЛЕКТРОННОЕ РАЗДЕЛЕНИЕ ВНЕШНИХ И ВНУТРЕННИХ ЦЕПЕЙ, 8 ВХОДОВ U/ I/ R/ ТЕРМОПАРЫ/ PT100, 14 БИТ. ФРОНТАЛЬНЫЙ СОЕДИНИТЕЛЬ ЗАКАЗЫВАЕТСЯ ОТДЕЛЬНО
Параметры
| Width | 25.0 |
| Height | 290.0 |
| Depth | 210.0 |
| Suitable for safety functions | Нет |
| Number of analogue inputs | 8 |
| Number of analogue outputs | 0 |
| Input, current | Да |
| Input, voltage | Да |
| Input, resistor | Да |
| Input, resistance thermometer | Да |
| Input, thermocouple | Да |
| Input signal, configurable | Да |
| Output, current | - |
| Output, voltage | - |
| Output signal configurable | - |
| Resolution of the analogue inputs | 14 |
| Resolution of the analogue outputs | - |
| Type of electric connection | Screw-/spring clamp connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | - |
| Appendant operation agent (Ex ia) | - |
| Appendant operation agent (Ex ib) | - |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Analogue inputs configurable | Да |
| Analogue outputs configurable | - |
| SIL according to IEC 61508 | - |
