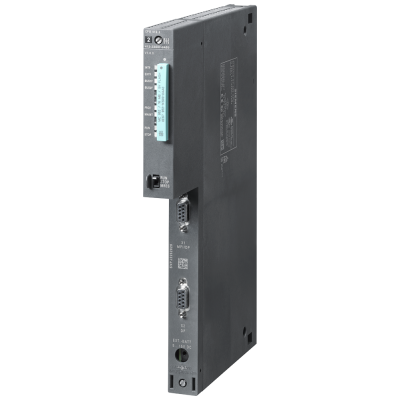

SIMATIC S7-400 CPU 412-2 1 MB
3 629.02€
Включая НДС
Артикул: 6ES7412-2XK07-0AB0
SIMATIC S7-400, CPU 412-2 центральный процессор: 1 МБ рабочей памяти, (0,5 МБ кода программы 0,5 МБ данных) 1. интерфейс MPI/DP 12 Мбит/с, 2. интерфейс PROFIBUS DP
Параметры
| Width | 25.0 |
| Model | Modular |
| Height | 290.0 |
| Depth | 219.0 |
| With display | Нет |
| Suitable for safety functions | Нет |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Type of memory | RAM |
| Memory size | 1000.0 |
| Processing time (1K, binary operation) | 0.03125 |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | - |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | - |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | - |
| With optical interface | Нет |
| Additional program memory possible | Нет |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Да |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Redundancy | Да |
| Rail mounting possible | Нет |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | - |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Нет |
| Rack-assembly possible | Да |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Number of relay outputs | 0 |
| Max. number of time switches | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | - |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
