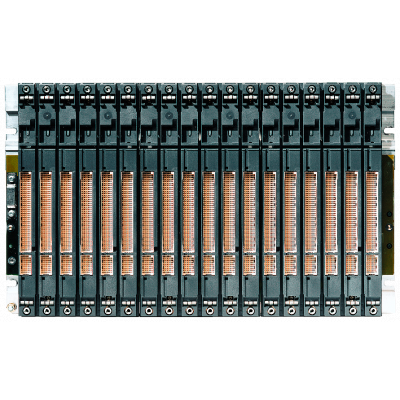

SIMATIC S7-400 UR1 With 18 slots, aluminum For configuring S7-400 central units and expansion units
1 785.89€
Включая НДС
Артикул: 6ES7400-1TA11-0AA0
SIMATIC S7-400, УНИВЕРСАЛЬНАЯ СТОЙКА UR1 ALU (МАТЕРИАЛ АЛЮМИНИЙ), ДЛЯ ИСПОЛЬЗОВАНИЯ В КАЧЕСТВЕ ЦЕНТРАЛЬНОЙ СТОЙКИ И СТОЙКИ РАСШИРЕНИЯ, 18 СЛОТОВ, ВОЗМОЖНО ИСПОЛЬЗОВАНИЕ РЕЗЕРВИРОВАННЫХ МОДУЛЕЙ ПИТАНИЯ
Параметры
| Width | 482.5 |
| Height | 290.0 |
| Depth | 27.5 |
| Suitable for safety functions | Нет |
| Type of voltage (input voltage) | - |
| Number of slots | 18 |
| Redundancy | Да |
| With integrated power supply | Нет |
| Rail mounting possible | Нет |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | - |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | - |
| Front build in possible | Да |
| Rack-assembly possible | Да |
| Wall mounting/direct mounting | Да |
| Input voltage at AC 50 Hz | - |
| Input voltage at AC 60 Hz | - |
| Input voltage at DC | - |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | - |
| Max. input current AC 50 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | - |
| Performance level acc. EN ISO 13849-1 | - |
| Type of output voltage | - |
| SIL according to IEC 61508 | - |
