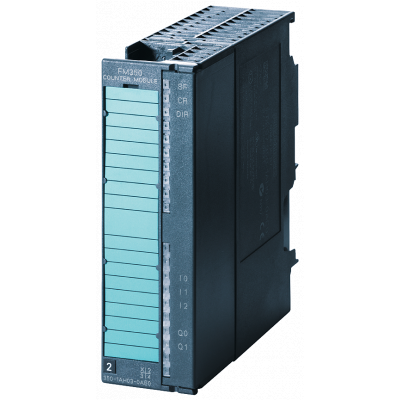

SIMATIC S7-300 FM 350-1 Up to 500 kHz
618.44€
Включая НДС
Артикул: 6ES7350-1AH03-0AE0
SIMATIC S7-300, FM 350-1: 1-КАНАЛЬНЫЙ МОДУЛЬ СКОРОСТНОГО СЧЕТА, ДО 500 КГЦ, ИНТЕРФЕЙС ДЛЯ ПОДКЛЮЧЕНИЯ 5В- ИЛИ 24В-ИНКРЕМЕНТАЛЬНЫХ ДАТЧИКОВ ПОЗИЦИОНИРОВАНИЯ, ПОДДЕРЖКА ИЗОХРОННОГО РЕЖИМА, КОМПАКТ ДИСК С ПРОГРАММНЫМ ОБЕСПЕЧЕНИЕМ ПРОЕКТИРОВАНИЯ The SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. As many as 12 IO modules can be inserted into each station. The standardized setup of all modules considerably simplifies logistics and stocking of spare parts. The ET 200M can be used both for standard and for safety-oriented applications. Up to 12 multi-channel signal modules (e.g. 64 digital inputs) and function modules as well as S7-300 communications processors can be used as I/O modules (the interface to the process). This means the ET 200M also supports modules with extended user data, such as HART modules with HART auxiliary variables. In addition to conventional connection methods, the ET 200M offers you the FastConnect fast connection technology for easy wiring without stripping.
Параметры
| Width | 40.0 |
| Height | 125.0 |
| Depth | 120.0 |
| Suitable for safety functions | Нет |
| Redundancy | Нет |
| Number of functions | - |
| Suitable for counting | Да |
| Suitable for weighting | Нет |
| Suitable for welding control | Нет |
| Suitable for pressure control | Нет |
| Suitable for NC | Нет |
| Suitable for SSI | Нет |
| Function electronic positioning available | Нет |
| Suitable for CNC | Нет |
| Suitable for incremental data detection | Да |
| Suitable for detection absolute value | Нет |
| Flux controller possible | Нет |
| Suitable for flux measurement | Нет |
| Suitable for path controller | Нет |
| Suitable for cam controller | Нет |
| Suitable for flying saw | Нет |
| Suitable for multi-axis control | Нет |
| Single-axis controller possible | Нет |
| Suitable for multi-axis positioning | Нет |
| Single-axis positioning possible | Нет |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Suitable for temperature control | Нет |
| SIL according to IEC 61508 | - |
