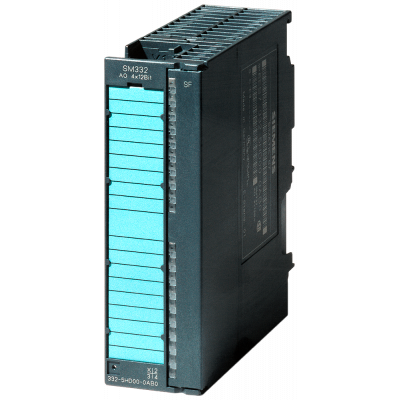

SIMATIC S7-300 SM 332 AQ 4x12 bit

SIMATIC S7-300, SM 332, МОДУЛЬ ВЫВОДА АНАЛОГОВЫХ СИГНАЛОВ: ГАЛЬВАНИЧЕСКОЕ РАЗДЕЛЕНИЕ ВНЕШНИХ И ВНУТРЕННИХ ЦЕПЕЙ, 4 ВХОДА U/ I, 11/12 БИТ, ДИАГНОСТИКА. 20-ПОЛЮСНЫЙ ФРОНТАЛЬНЫЙ СОЕДИНИТЕЛЬ ЗАКАЗЫВАЕТСЯ ОТДЕЛЬНО The SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. As many as 12 IO modules can be inserted into each station. The standardized setup of all modules considerably simplifies logistics and stocking of spare parts. The ET 200M can be used both for standard and for safety-oriented applications. Up to 12 multi-channel signal modules (e.g. 64 digital inputs) and function modules as well as S7-300 communications processors can be used as I/O modules (the interface to the process). This means the ET 200M also supports modules with extended user data, such as HART modules with HART auxiliary variables. In addition to conventional connection methods, the ET 200M offers you the FastConnect fast connection technology for easy wiring without stripping.

Параметры

Width	40.0
Height	125.0
Depth	117.0
Suitable for safety functions	Нет
Number of analogue inputs	0
Number of analogue outputs	4
Input, current	-
Input, voltage	-
Input, resistor	-
Input, resistance thermometer	-
Input, thermocouple	-
Input signal, configurable	-
Output, current	Да
Output, voltage	Да
Output signal configurable	Да
Resolution of the analogue inputs	-
Resolution of the analogue outputs	12
Type of electric connection	Screw-/spring clamp connection
Explosion safety category for gas	ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust	None
Appendant operation agent (Ex ia)	Нет
Appendant operation agent (Ex ib)	Нет
Category according to EN 954-1	-
Performance level acc. EN ISO 13849-1	-
Analogue inputs configurable	-
Analogue outputs configurable	Да
SIL according to IEC 61508	-
