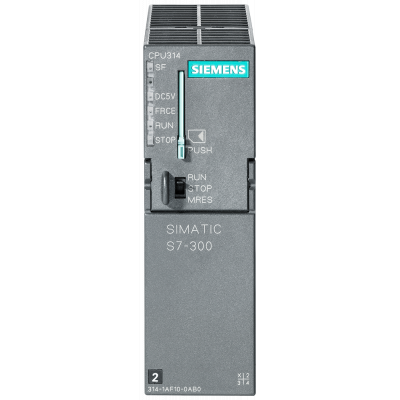

SIMATIC S7-300 CPU 314 128 KB
904.39€
Включая НДС
Артикул: 6ES7314-1AG14-0AB0
SIMATIC S7-300, ЦПУ CPU 314 С ИНТЕРФЕЙСОМ MPI, ВСТРОЕННЫЙ БЛОК ПИТАНИЯ =24 В, 128 КБАЙТА РАБОЧЕЙ ПАМЯТИ, ДЛЯ РАБОТЫ НЕОБХОДИМА КАРТА ПАМЯТИ MICRO MEMORY CARD Powerful, compact and cost-effective. SIMATIC S7-300 permits space-saving and modular configurations. The wide range of available modules can be used for central expansions or for the assembly of distributed structures for each specific task and allows low-cost storage of spare parts. SIMATIC is renowned for its quality and consistency. Do you want to continue to utilize the investments made in your machines and plants? Even more power and performance for your machine? The innovative SIMATIC S7-1500 is a worthy successor to the SIMATIC S7-300. With improved system properties, this generation of controllers integrates state-of-the-art and future-proof technologies in the automation system. Together with the TIA Portal engineering system, the shared engineering for all SIMATIC controllers, you are optimally prepared for ever faster changes in the market, increasingly shorter product life cycles, as well as rising competition and cost pressure. Information on the product life cycle: As part of our established product portfolio, the SIMATIC S7-300 / ET 200M system families will generally be available until 2023. Following the product phase-out declaration, products will be available as spare parts for another ten years.
Параметры
| Width | 40.0 |
| Model | Modular |
| Height | 125.0 |
| Depth | 130.0 |
| With display | Нет |
| Suitable for safety functions | Нет |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Type of memory | RAM |
| Memory size | 128.0 |
| Processing time (1K, binary operation) | 0.06 |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Additional program memory possible | Нет |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| Redundancy | Да |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Нет |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Number of relay outputs | 0 |
| Max. number of time switches | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | None |
