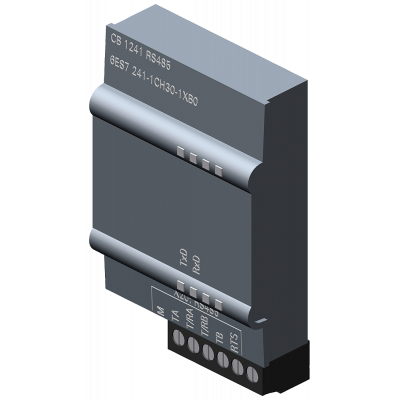

SIMATIC S7-1200 CB 1241 RS 485
100.34€
Включая НДС
Артикул: 6ES7241-1CH30-1XB0
SIMATIC S7-1200, КОММУНИКАЦИОННАЯ СИСТЕМНАЯ ПЛАТА CB 1241, RS485, ВИНТОВОЕ ПОДКЛЮЧЕНИЕ, ПОДДЕРЖКА ТЕЛЕГРАММ В РЕЖИМЕ СВОБОДНО ПРОГРАММИРУЕМОГО ПОРТА SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options If you only have to extend your SIMATIC S7-1200 CPU with a few inputs or outputs, signal boards are a good alternative to signal modules. Signal boards are plugged directly onto the front of the controller (also possible with the CPU 1211C) and are available as digital and analog input, output and hybrid modules. A communications board with an RS 485 interface is also available. Signal boards thus permit subsequent expansion of the configuration without requiring any further space in the control cabinet.
Параметры
| Width | 38.0 |
| Height | 62.0 |
| Depth | 21.0 |
| Suitable for safety functions | Нет |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Redundancy | Нет |
| Transmission rate | 9.6 |
| With potential separation | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Type of data transmission | Serial |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
