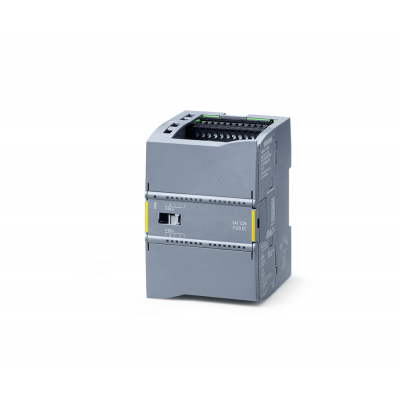

SIMATIC S7-1200 SM 1226 F-DQ 4x 24 VDC
222.35€
Включая НДС
Артикул: 6ES7226-6DA32-0XB0
SIMATIC S7-1200, ОТКАЗОБЕЗОПАСНЫЙ МОДУЛЬ ДИСКРЕТНОГО ВЫВОДА, SM 1226, F-DQ 4, =24 В/2 А, PROFISAFE, ШИРИНОЙ 75 ММ, УРОВЕНЬ БЕЗОПАСНОСТИ ДО PL E (ISO 13849-1)/ ДО SIL3 (IEC 61508) ВКЛЮЧИТЕЛЬНО SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure.
Параметры
| Width | 70.0 |
| Height | 100.0 |
| Depth | 75.0 |
| Input current at signal 1 | - |
| Suitable for safety functions | Да |
| Number of digital inputs | 0 |
| Number of digital outputs | 4 |
| Time delay at signal exchange | - |
| Voltage type of supply voltage | DC |
| Type of voltage (input voltage) | - |
| Redundancy | Нет |
| Output current | 2.0 |
| Short-circuit protection, outputs available | Да |
| Type of digital output | Transistor |
| Type of electric connection | Screw connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | Level e |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Permitted voltage at output | 0.0 |
| Permitted voltage at input | - |
| Type of output voltage | DC |
| Digital inputs configurable | - |
| Digital outputs configurable | Да |
| SIL according to IEC 61508 | 3 |
