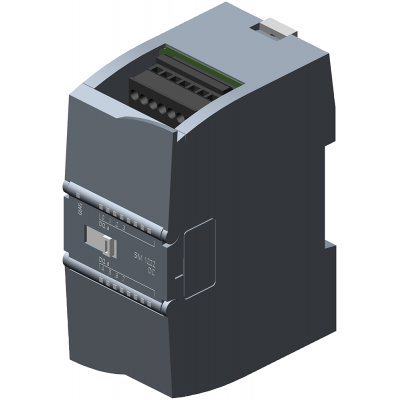

SIMATIC S7-1200 SM 1222, DQ 8x24 V DC/0.5 A
132.41€
Включая НДС
Артикул: 6ES7222-1BF32-0XB0
SIMATIC S7-1200, МОДУЛЬ ДИСКРЕТНОГО ВЫВОДА SM 1222, 8DO, =24 В, ТРАНЗИСТОРНЫЕ ВЫХОДЫ 0,5 A SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure.
Параметры
| Width | 45.0 |
| Height | 100.0 |
| Depth | 75.0 |
| Input current at signal 1 | - |
| Suitable for safety functions | Нет |
| Number of digital inputs | 0 |
| Number of digital outputs | 8 |
| Time delay at signal exchange | 0.05 |
| Voltage type of supply voltage | DC |
| Type of voltage (input voltage) | - |
| Redundancy | Нет |
| Output current | 0.5 |
| Short-circuit protection, outputs available | Нет |
| Type of digital output | Transistor |
| Type of electric connection | Screw connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Permitted voltage at output | 0.0 |
| Permitted voltage at input | - |
| Type of output voltage | DC |
| Digital inputs configurable | - |
| Digital outputs configurable | Да |
| SIL according to IEC 61508 | - |
