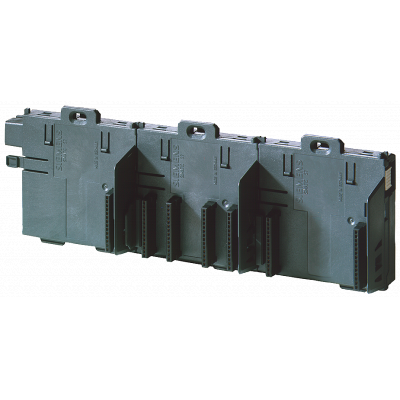

SIMATIC ET 200M BM 1x80 For one 80 mm I/O module
112.57€
Включая НДС
Артикул: 6ES7195-7HC00-0XA0
SIMATIC DP, ET 200M, АКТИВНЫЙ ШИННЫЙ МОДУЛЬ С ПОДДЕРЖКОЙ ФУНКЦИЙ "ГОРЯЧЕЙ" ЗАМЕНЫ, ДЛЯ УСТАНОВКИ 1 МОДУЛЯ ШИРИНОЙ 80MM The SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. As many as 12 IO modules can be inserted into each station. The standardized setup of all modules considerably simplifies logistics and stocking of spare parts. The ET 200M can be used both for standard and for safety-oriented applications. Up to 12 multi-channel signal modules (e.g. 64 digital inputs) and function modules as well as S7-300 communications processors can be used as I/O modules (the interface to the process). This means the ET 200M also supports modules with extended user data, such as HART modules with HART auxiliary variables. In addition to conventional connection methods, the ET 200M offers you the FastConnect fast connection technology for easy wiring without stripping.
Параметры
| Width | 97.0 |
| Height | 92.0 |
| Depth | 30.0 |
| Suitable for safety functions | Нет |
| Type of voltage (input voltage) | DC |
| Number of slots | 2 |
| With pluggable modules, digital I/O | Да |
| With pluggable modules, analogue I/O | Да |
| With pluggable modules, communication modules | Да |
| With pluggable modules, function and technology modules | Да |
| With pluggable modules, central modules | Да |
| With pluggable modules, others | Да |
| With integrated power supply | Нет |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | - |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Да |
| Input voltage at AC 50 Hz | - |
| Input voltage at AC 60 Hz | - |
| Input voltage at DC | 20.4 |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | - |
| Max. input current AC 50 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | 6.0 |
| Performance level acc. EN ISO 13849-1 | - |
| Type of output voltage | - |
| SIL according to IEC 61508 | - |
