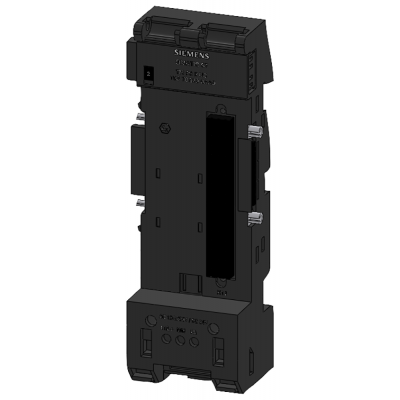

SIMATIC ET 200iSP TM-PS-B UC
228.89€
Включая НДС
Артикул: 6ES7193-7DB20-0AA0
SIMATIC DP, ТЕРМИНАЛЬНЫЙ МОДУЛЬ TM-PS-B STANDARD ДЛЯ ET200ISP, В ДОПОЛНЕНИЕ К TM-PS-A, ДЛЯ УСТАНОВКИ РЕЗЕРВНОГО БЛОКА ПИТАНИЯ ~120/230V
Параметры
| Width | 60.0 |
| Height | 190.0 |
| Depth | 52.0 |
| Suitable for safety functions | Да |
| Type of voltage (input voltage) | AC |
| Number of slots | 1 |
| With pluggable modules, digital I/O | Нет |
| With pluggable modules, analogue I/O | Нет |
| With pluggable modules, communication modules | Нет |
| With pluggable modules, function and technology modules | Нет |
| With pluggable modules, central modules | Нет |
| With pluggable modules, others | Да |
| With integrated power supply | Нет |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 2G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 2D |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | 20.4 |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Нет |
| Input voltage at AC 50 Hz | 85 |
| Input voltage at AC 60 Hz | 85 |
| Input voltage at DC | - |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | 5.0 |
| Max. input current AC 50 Hz | 6.0 |
| Max. input current AC 60 Hz | 6.0 |
| Max. input current DC | - |
| Performance level acc. EN ISO 13849-1 | - |
| Type of output voltage | DC |
| SIL according to IEC 61508 | - |
