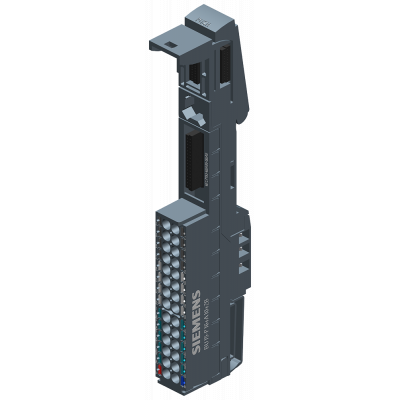

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2B PU 10
22.06€
Включая НДС
Артикул: 6ES7193-6BP20-2BA0
SIMATIC ET 200SP, БАЗОВЫЙ БЛОК BU15-P16+A10+2B, ТИП A0, 10 ШТУК В УПАКОВКЕ, ВТЫЧНЫЕ КЛЕММЫ, С 10 ДОП. (AUX) -КЛЕММАМИ, ПОДКЛЮЧЕНИЕ К СУЩ. НАГРУЗОЧНОЙ ГРУППЕ (БАЗОВОГО БЛОКА СЛЕВА) Ш Х В: 15MMX141MM The SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system. With its small footprint, it is particularly well-suited for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. The SIMATIC ET 200SP can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a very comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available. For price-sensitive applications, there are modules with basic functions (BA). The advantage of the ET 200SP system is in its ease of application, such as through the free selection of the PROFINET connection technology via the BusAdapter, the tool-free wiring by means of push-in technology, improved accessibility of the wiring due to a new arrangement of the spring releases, in addition to the associated conductor aperture and the channel-precise diagnostic functions. The availability and productivity of the machine are ensured by the capability of swapping modules and terminal boxes during operation, the so-called "hot swapping". The scalable, cost-optimized configuration of an ET 200SP station is ensured by the wide range of signal modules. In addition to digital and analog input and output modules, respective fail-safe variants are also available for applications up to SIL 3 / PLe. This also applies to the integrated motor starters, which are suitable for motors up to 5.5 kW. Energy Meters for measuring and analyzing the energy consumption, IO-Link master (V1.1.), and many other communication and technology modules allow the system to be adapted to any automation task.
Параметры
| Width | 15.0 |
| Height | 141.0 |
| Depth | 35.0 |
| Suitable for safety functions | Да |
| Type of voltage (input voltage) | DC |
| Number of slots | 1 |
| With pluggable modules, digital I/O | - |
| With pluggable modules, analogue I/O | - |
| With pluggable modules, communication modules | - |
| With pluggable modules, function and technology modules | - |
| With pluggable modules, central modules | - |
| With pluggable modules, others | - |
| With integrated power supply | Нет |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | - |
| Front build in possible | Да |
| Rack-assembly possible | Да |
| Wall mounting/direct mounting | Нет |
| Input voltage at AC 50 Hz | - |
| Input voltage at AC 60 Hz | - |
| Input voltage at DC | 19.2 |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | - |
| Max. input current AC 50 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | - |
| Performance level acc. EN ISO 13849-1 | - |
| Type of output voltage | - |
| SIL according to IEC 61508 | - |
