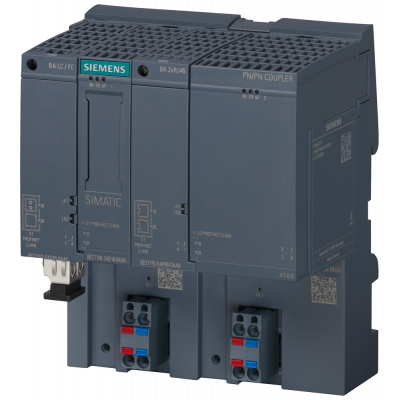

SIMATIC DP PN/PN coupler
657.62€
Включая НДС
Артикул: 6ES7158-3AD10-0XA0
SIMATIC PN/PN Coupler, шлюз для детерминированного обмена обмена данных между макс.4 PN-Controller в подсети, а также между двумя подсетями, обмен данными PROFIsafe, I/O-, MSI-, MSO- и data record коммуникации, резервированное питание, подключение к PROFINET через шинный адаптер SIMATIC The SIMATIC PN/PN coupler offers a simple and efficient way of connecting machines and communication between controllers via PROFINET. Maximum productivity, performance and availability are ensured by supporting the latest specifications. Efficient engineering and flexible use regardless of the connection method used reduce the costs of engineering and commissioning. Simple error localization and device replacement without additional hardware (PC or memory card) also simplify handling in the event of an error. All SIMATIC ET 200SP BusAdapters are supported and feature a universal PROFINET interface.
Параметры
| Width | 100.0 |
| Height | 117.0 |
| Depth | 74.0 |
| Suitable for safety functions | Да |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | - |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | - |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | - |
| With potential separation | Да |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Нет |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Front build in possible | Да |
| Rack-assembly possible | Да |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | - |
| IO link master | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | - |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Да |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
