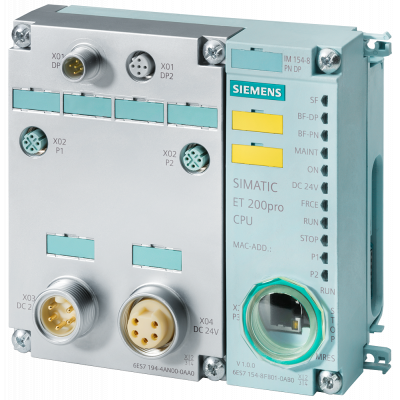

SIMATIC ET 200pro IM 154-8F PN/DP CPU
2 276.88€
Включая НДС
Артикул: 6ES7154-8FB01-0AB0
SIMATIC DP, IM 154-8F PN/DP PLC ДЛЯ ET200PRO, 512КБ РАБОЧЕЙ ПАМЯТИ, ВСТР. PROFINET IF, ВСТР. PROFIBUS DP MASTER/SLAVE IF, СТЕПЕНЬ ЗАШИТЫ IP65/67, НЕОБХОДИМА MMC The SIMATIC ET 200pro is a very rugged and powerful modular distributed I/O system with IP65/67 degree of protection, for installation outside the control cabinet directly at the machine. The modules can either be plugged directly into an ET 200pro CPU or connected to a central controller via PROFINET or PROFIBUS. It is also possible to connect to the central controller wirelessly via WLAN, which allows the use of the SIMATIC ET 200pro for electric monorail systems, automated guided vehicles, in building management, and in warehouse logistics. Due to its comprehensive range of modules, it is especially useful where a fine-modular configuration with different functions is required in harsh ambient conditions. The separation of module and bus/power connection technology allows a module to be swapped during operation (so-called "hot swapping"), which ensures the availability and productivity of the machine in connection with the detailed diagnostics. The system provides a very wide range of modules. In addition to various digital and analog input and output modules with a wide range of characteristics, a number of fail-safe modules for applications up to SIL 3 / PLe are also available. The ET 200pro system provides integrated solutions especially for motor control in the form of motor starters and frequency converters, which are also available as fail-safe variants. An IO-Link master and a module for connecting RFID component devices via the RS 232 / 422 interface round out the portfolio.
Параметры
| Width | 135.0 |
| Height | 130.0 |
| Depth | 65.0 |
| Suitable for safety functions | Да |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Type of voltage (input voltage) | DC |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Да |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| Number of slots | 16 |
| With pluggable modules, digital I/O | Да |
| With pluggable modules, analogue I/O | Да |
| With pluggable modules, communication modules | Да |
| With pluggable modules, function and technology modules | Да |
| With pluggable modules, central modules | Да |
| With pluggable modules, others | Да |
| With potential separation | Да |
| With integrated power supply | Нет |
| Type of electric connection | Plug-in connection |
| Rail mounting possible | Да |
| With bus coupler for modular station connection | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Да |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Degree of protection (IP) | IP65/IP67 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | 4 |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | - |
| Front build in possible | - |
| Rack-assembly possible | - |
| Wall mounting/direct mounting | Да |
| Input voltage at AC 50 Hz | - |
| Input voltage at AC 60 Hz | - |
| Input voltage at DC | 20.4 |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | - |
| Max. input current AC 50 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | - |
| Performance level acc. EN ISO 13849-1 | Level e |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Да |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Да |
| Supporting protocol for SafetyBUS p | Нет |
| Type of output voltage | - |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | 3 |
