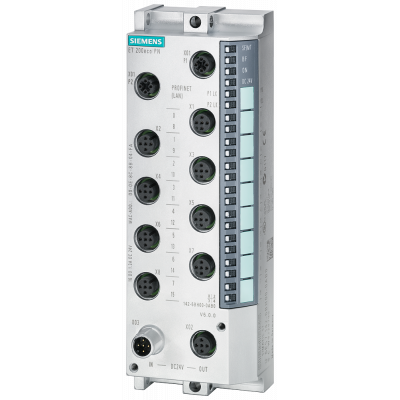

SIMATIC ET 200eco PN 4IO-L + 8DI + 4DQ 24 V DC/1.3 A 8x M12
595.30€
Включая НДС
Артикул: 6ES7148-6JA00-0AB0
SIMATIC DP, СТАНЦИЯ РАСПРЕДЕЛЁННОЙ ПЕРИФЕРИИ ET 200ECO PN: IO-LINK МАСТЕР, 4IO-L + 8DI + 4DO =24 В/1.3A 8 X M12, ДВОЙНОЕ РАСКЛЮЧЕНИЕ, СТЕПЕНЬ ЗАЩИТЫ IP67 SIMATIC ET 200eco PN is a compact block I/O with a PROFINET connection with IP65/67 degree of protection for cabinet-free installation directly at the machine. Due to its fully-sealed zinc die-cast enclosure, the ET 200eco PN is mechanically very rugged and resistant to vibrations, dust, oil or humidity, and is thus also suitable for use outdoors. Due to the ATEX approval, the ET 200eco PN can also be used in hazardous areas up to Zone 2. Thanks to its ruggedness, it is particularly suitable for a wide range of applications in machine building and the automotive industry and, in particular, for tool changing machines. In addition to digital and analog input and output modules with various characteristics (incl. current, voltage, temperature and resistance measurements), the range of products also encompasses the IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe. If need be, the outputs of the standard modules can also be practically disconnected in a fail-safe manner up to SIL 2.
Параметры
| Width | 60.0 |
| Height | 175.0 |
| Depth | 49.0 |
| Suitable for safety functions | Нет |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| With potential separation | Да |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 3D |
| Fieldbus connection over separate bus coupler possible | Нет |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Degree of protection (IP) | IP65/IP67 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Да |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | - |
| IO link master | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
