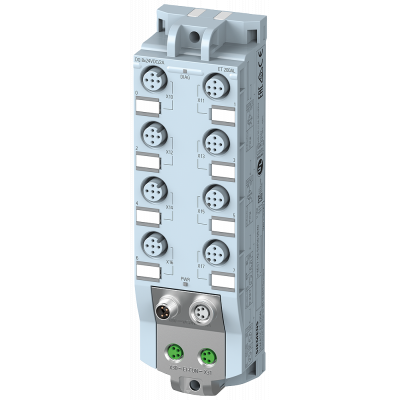

SIMATIC ET 200AL DQ 8x24VDC/2A 8x M12
207.59€
Включая НДС
Артикул: 6ES7142-5AF00-0BA0
SIMATIC ET 200AL, станция распределённой периферии DQ 8X24VDC/2A, 8XM12, степень защиты IP67 SIMATIC ET 200AL is a modular IO system with high degree of protection IP65/67, especially compact design, small space requirement and low weight. It is specially designed for distributed control electronics in tight spaces and involving motion, and is quickly and easily configured and commissioned using the TIA Portal. Standard modules can be disconnected group-by-group in a safety-related manner. The I/O modules are the interface of the SIMATIC ET 200AL to the process. They are available as digital and analog input and output modules and as mixed modules (digital). The sensors are connected with the M8 or M12 connection system. The modules can be optionally connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP.
Параметры
| Width | 45.0 |
| Height | 159.0 |
| Depth | 40.0 |
| Input current at signal 1 | - |
| Suitable for safety functions | Нет |
| Number of digital inputs | 0 |
| Number of digital outputs | 8 |
| Time delay at signal exchange | - |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Type of voltage (input voltage) | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Output current | 2.0 |
| Short-circuit protection, outputs available | Да |
| Type of digital output | - |
| Type of electric connection | - |
| Rail mounting possible | Да |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Да |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Degree of protection (IP) | IP65/IP67 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Да |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Permitted voltage at output | - |
| Permitted voltage at input | - |
| Type of output voltage | DC |
| Digital inputs configurable | - |
| Digital outputs configurable | Да |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
