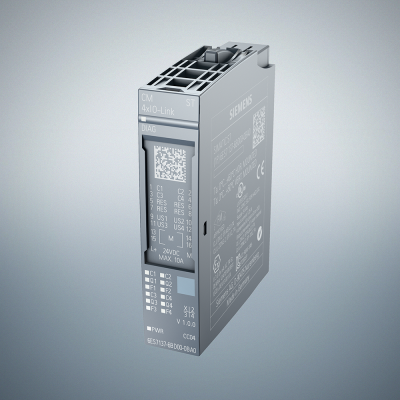

КОММУНИКАЦИОННЫЙ МОДУЛЬ CM 4 X IO-LINK MASTER V1.1 ДЛЯ ET 200SP
247.25€
Включая НДС
Артикул: 6ES7137-6BD00-0BA0
КОММУНИКАЦИОННЫЙ МОДУЛЬ CM 4 X IO-LINK MASTER V1.1 ДЛЯ ET 200SP The SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system. With its small footprint, it is particularly well-suited for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. The SIMATIC ET 200SP can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a very comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available. For price-sensitive applications, there are modules with basic functions (BA). The advantage of the ET 200SP system is in its ease of application, such as through the free selection of the PROFINET connection technology via the BusAdapter, the tool-free wiring by means of push-in technology, improved accessibility of the wiring due to a new arrangement of the spring releases, in addition to the associated conductor aperture and the channel-precise diagnostic functions. The availability and productivity of the machine are ensured by the capability of swapping modules and terminal boxes during operation, the so-called "hot swapping". Communication modules expand the communication capabilities of the ET 200SP by additional functions or interfaces, such as PtP, IO-Link or AS-i. The accessories available for the ET 200SP range from color-coding plates and equipment labeling plates to labeling strips for the individual modules and thus ensure maximum manageability in the control cabinet.
Параметры
| Width | 13.0 |
| Height | 73.0 |
| Depth | 58.0 |
| Suitable for safety functions | Нет |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Да |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | - |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| With potential separation | Да |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | - |
| Fieldbus connection over separate bus coupler possible | Да |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Front build in possible | Да |
| Rack-assembly possible | Да |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | - |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
