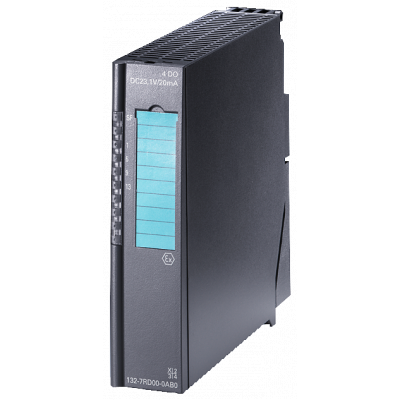

SIMATIC ET 200iSP 4DQ 23.1 V DC/20 mA SHUT DOWN "L"
459.00€
Включая НДС
Артикул: 6ES7132-7GD00-0AB0
SIMATIC DP, ЭЛЕКТРОННЫЙ МОДУЛЬ ДИСКРЕТНОГО ВЫВОДА ДЛЯ ET 200ISP, 4 DO, =23,1В/20MA, "L"-ОТКЛЮЧЕНИЕ
Параметры
| Width | 30.0 |
| Height | 129.0 |
| Depth | 136.5 |
| Input current at signal 1 | - |
| Suitable for safety functions | Нет |
| Number of digital inputs | 0 |
| Number of digital outputs | 4 |
| Time delay at signal exchange | 1.5 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Type of voltage (input voltage) | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Output current | 0.02 |
| Short-circuit protection, outputs available | Да |
| Type of digital output | Other |
| Type of electric connection | Screw-/spring clamp connection |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 2G |
| Explosion safety category for dust | Other |
| Fieldbus connection over separate bus coupler possible | Да |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Да |
| Appendant operation agent (Ex ib) | Да |
| Degree of protection (IP) | IP30 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | - |
| Permitted voltage at output | 0.0 |
| Permitted voltage at input | - |
| Type of output voltage | DC |
| Digital inputs configurable | - |
| Digital outputs configurable | Да |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | None |
