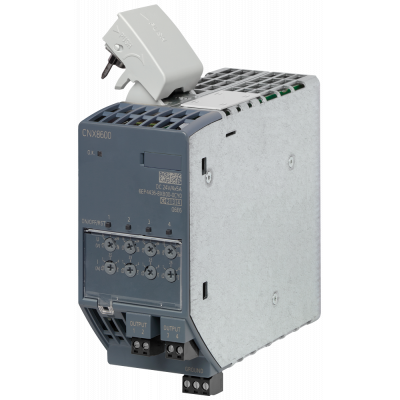

Expansion module SITOP CNX8600 for SITOP PSU8600 24 V DC/4X 5 A
236.59€
Включая НДС
Артикул: 6EP4436-8XB00-0CY0
SITOP CNX8600 4X 5A МОДУЛЬ РАСШИРЕНИЯ ДЛЯ PSU8600 ВЫХОД: DC 24 V/4X 5 A The SITOP CNX8600 expansion modules are part of the SITOP PSU8600 modular system and expand the number of selectively monitored outputs of the basic unit. Up to four CNX8600 expansion modules in any combination can be connected to a PSU8600 basic unit. The connection is made on the top of the modules without involving any wiring work using the System Clip Link, a connecting plug for system data and energy supply. The PSU8600 power supply system with complete TIA integration sets a new standard for system reliability and efficiency.
Параметры
| Width | 60.0 |
| Height | 125.0 |
| Depth | 150.0 |
| Built-in height | 225.0 |
| Power consumption | - |
| Built-in width | 60.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | - |
| Power output | 480.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 5 |
| 2nd secondary output voltage | 5 |
| 3rd secondary output voltage | 5 |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | - |
| Rated supply voltage at AC 60 Hz | - |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 20 |
| Max. output current 2 | 5 |
| Max. output current 3 | 5 |
| Nominal value output voltage 1 | 24 |
| Nominal value output voltage 2 | 24 |
| Nominal value output voltage 3 | 24 |
| Nominal value output current 1 | 20.0 |
| Nominal value output current 2 | 5 |
| Nominal value output current 3 | 5 |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
