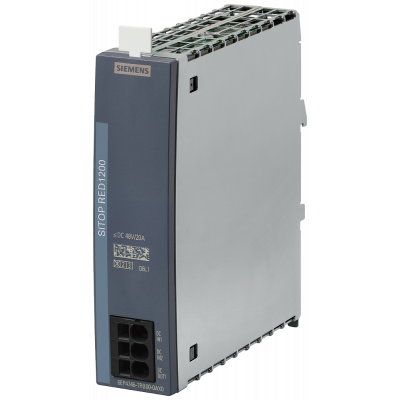

Redundancy module SITOP RED1200, 12 V DC, 24 V DC, 48 V DC
87.77€
Включая НДС
Артикул: 6EP4346-7RB00-0AX0
SITOP, модуль резервирования RED1200, Вход/Выход: =24/48 В / 20 A подходит для развязки двух источников питания SITOP с максимальным выходным током 10:00 AM The SITOP RED1200 redundancy modules are the optimum expansion for all 12, 24, 48 V power supplies in order to ensure additional protection against supply failure. The redundancy module decouples two 12, 24, 48 V power supplies of the same type so that if one power supply fails, the consumers continue to be supplied via the second power supply. Redundancy modules can also be used to connect power supplies of the same type in parallel in order to increase capacity. Whatever industry, whatever requirement – Siemens offers reliable and efficient power supplies for any system.
Параметры
| Width | 35.0 |
| Height | 135.0 |
| Depth | 125.0 |
| Built-in height | 225.0 |
| Power consumption | - |
| Built-in width | 35.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | DC |
| Power output | - |
| Output voltage stabilized | - |
| Type of electric connection | Spring clamp connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | - |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Нет |
| Rated supply voltage at AC 50 Hz | - |
| Rated supply voltage at AC 60 Hz | - |
| Rated supply voltage at DC | 12 |
| Short-circuit-proof | - |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | - |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 20.0 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
