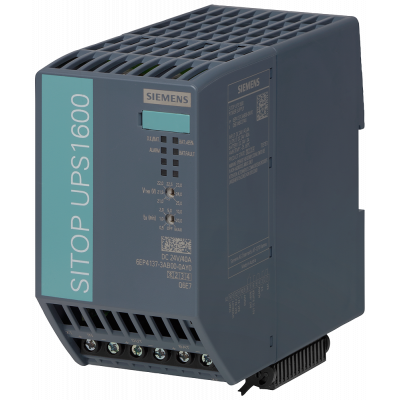

Uninterruptible power supply SITOP UPS1600, 24 V DC/40 A
427.39€
Включая НДС
Артикул: 6EP4137-3AB00-0AY0
SITOP UPS1600 40A БЛОК БЕСПЕРЕБОЙНОГО ЭЛЕКТРОПИТАНИЯ ВХОД: DC 24 V ВЫХОД: DC 24 V/40 A The SITOP UPS1600 uninterruptible power supply with UPS1100 battery modules is the optimal addition to all 24 V power supplies. It provides buffering for extended power failures over hours and thus ensures interruption-free plant operation The intelligent battery management automatically detects the UPS1100 energy storage device and ensures optimum temperature-controlled charging and continuous monitoring. The compact UPS1600 modules are resistant to overload in order, for example, to supply the inrush current for industrial PCs. The status signal is provided by a signal contact.
Параметры
| Width | 70.0 |
| Height | 139.0 |
| Depth | 150.0 |
| Weight | 0.65 |
| Voltage type | DC |
| Transition time for full load | - |
| Network-management | Нет |
| Construction type | - |
| Potential free switch contact | - |
| Input voltage | 24 |
| Output voltage | 18.5 |
| SNMP | Нет |
| USV- technology | Offline |
| Type of interface | None |
| Primary frequency | - |
| Secondary frequency | - |
| Number of phases secondary | - |
| Number of phases primary | - |
| Auto shut down function | - |
| Max. voltage distortion output (linear load) | - |
| Output power factor | - |
| Overall efficiency | - |
| Efficiency in eco-mode | - |
| Input connection | - |
| Number of output connections C13 | - |
| Number of output connections C19 | - |
| Number of output connections with protective contact (SCHUKO) | - |
| Number of output connections fixed connection | - |
| Output effective power | 960.0 |
| Output apparent power | - |
