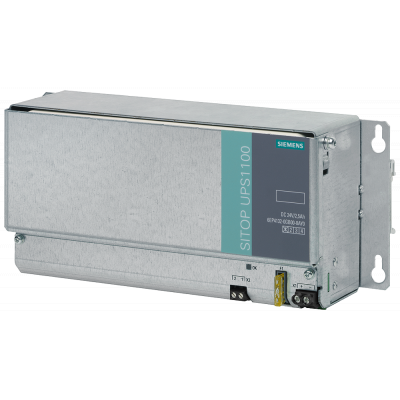

Battery module with pure lead battery SITOP UPS1100, 24 V DC/2.5 Ah
330.72€
Включая НДС
Артикул: 6EP4132-0GB00-0AY0
SITOP UPS1100 DC 24 V 2,5 AH АККУМУЛЯТОРНЫЙ МОДУЛЬ С НЕ ТРЕБУЮЩИМИ ТЕХНИЧЕСКОГО ОБСЛУЖИВАНИЯ ЗАКРЫТЫМИ АККУМУЛЯТОРАМИ ИЗ ЧИСТОГО СВИНЦА ДЛЯ МОДУЛЯ SITOP DC-USV The maintenance-free battery modules with SITOP UPS1100 temperature-tolerant pure lead batteries are an important component of the DC UPS systems. When combined with a 24 V power supply and a UPS1600 module, they provide hours-long buffering against power failures. The intelligent battery management of the UPS1600 charges the UPS1100 according to the optimum temperature-controlled charging curve and monitors the status (operating data and diagnostics information) of the connected battery modules using the Energy Storage Link. Up to six battery modules can be connected in parallel for longer buffer times. Mounting is on a standard mounting rail or directly on a wall.
Параметры
| Nominal voltage | 24.0 |
| Width | 265.0 |
| Model | Other |
| Weight | 3700.0 |
| Size indication | Other |
| Capacity | 2500.0 |
| Diameter | - |
| IEC indication | Other |
| Other indications | Other |
| Plastic housing | Нет |
| Length | 76.0 |
| Suited for EX-applications | Да |
| Ambient temperature | -40 |
| Suitable for rapid charger | Нет |
| Height including pole | 115.0 |
| Battery pack | Да |
| Number of cells | 12 |
