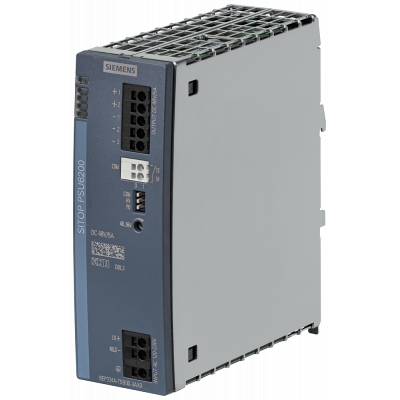

Power supply SITOP PSU6200, single-phase 48 V DC/5 A
248.04€
Включая НДС
Артикул: 6EP3344-7SB00-3AX0
SITOP, блок питания PSU6200 48 V/5 A, стабилизированный блок питания Вход: ~120/230 В Выход: =48 В/5 A, диагностический интерфейс The 1-phase SITOP PSU6200 are technology power supplies for demanding solutions and offer maximum functionality for use in complex plants and machines. The wide range input supports connection to each network worldwide and ensures security even during large fluctuations in voltage. The Extra-Power supplies up to 150% of the rated current for short periods of time. In case of an overload, the PSU6200 supplies a constant current up to a voltage of 15 V DC. The very high efficiency keeps the energy consumption and the heat development in the control cabinet at low levels and the entire metal enclosure is also space-saving. To further increase 24 V availability, the SITOP PSU6200 power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry, regardless of the requirement – Siemens offers reliable and efficient power supplies for any plant.
Параметры
| Width | 45.0 |
| Height | 135.0 |
| Depth | 125.0 |
| Built-in height | 225.0 |
| Power consumption | - |
| Built-in width | 45.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC/DC |
| Power output | 240.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Spring clamp connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 48 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | 240 |
| Rated supply voltage at AC 60 Hz | 120 |
| Rated supply voltage at DC | 110 |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 5 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 5.0 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
