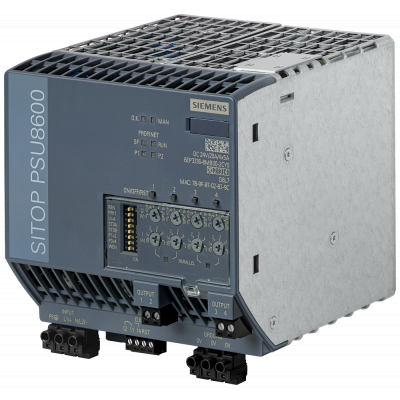

Power supply system SITOP PSU8600 1AC 24 V DC/20 A / 4x5 A PN/IE
731.40€
Включая НДС
Артикул: 6EP3336-8MB00-2CY0
SITOP, блок питания PSU8600 1AC 20A/4x5A PN, стабилизированный блок питания, вход: ~100-240 В, выход: =24 В/20 A/4x 5 A, с подключением к PN/IE, встроенный Web-сервер, встроенный OPC UA-сервер The 1-phase basic unit of the SITOP PSU8600 power supply system are optimally suited for use in larger plants or machines with networked (PROFINET) automation systems and strict requirements for reliability, functionality and system integration. Within its very compact overall width, the SITOP PSU8600 power supply system accommodates two Ethernet/PROFINET interfaces as well as four configurable outputs (voltage and current threshold) with selective monitoring. Other modules from the modular system can be added to expand the number of outputs (CNX8600) or to increase the mains buffering time (BUF8600, UPS8600/BAT8600) according to requirements – without additional wiring work. Comprehensive diagnostics and maintenance information is available via PROFINET and can be evaluated directly in SIMATIC S7 and visualized in SIMATIC WinCC. Energy management is also optimally supported through collection of energy data for each output and individual enabling and disabling of outputs via PROFIenergy. The unparalleled PSU8600 modular power supply system with full TIA integration sets a new standard for system reliability and efficiency.
Параметры
| Width | 125.0 |
| Height | 125.0 |
| Depth | 150.0 |
| Built-in height | 225.0 |
| Power consumption | - |
| Built-in width | 125.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC/DC |
| Power output | 480.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 5 |
| 2nd secondary output voltage | 5 |
| 3rd secondary output voltage | 5 |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | 230 |
| Rated supply voltage at AC 60 Hz | 120 |
| Rated supply voltage at DC | 110 |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 20 |
| Max. output current 2 | 5 |
| Max. output current 3 | 5 |
| Nominal value output voltage 1 | 24 |
| Nominal value output voltage 2 | 24 |
| Nominal value output voltage 3 | 24 |
| Nominal value output current 1 | 20.0 |
| Nominal value output current 2 | 5 |
| Nominal value output current 3 | 5 |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
