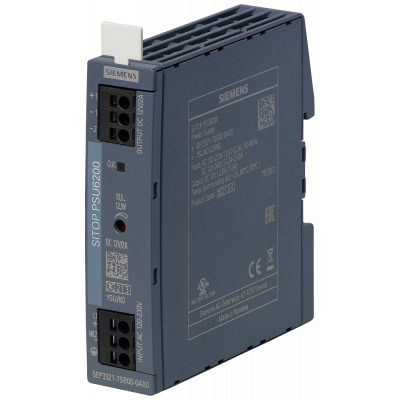

Power supply SITOP PSU6200, single-phase 12 V DC/2 A
86.50€
Включая НДС
Артикул: 6EP3321-7SB00-0AX0
SITOP, стабилизированный блок питания PSU6200 12 V/2 A, вход: ~100-230 В / =110-250 В, выход: =12 В/2 A The 1-phase SITOP PSU6200 mini are slim and space-saving power supplies for the low performance range. They are used in distributed applications in control boxes or in small control cabinets. They are characterized by the low power loss across the entire load range. The losses are very low even in idle, which makes these power supplies ideally suited for supply of machines and plants that are often in standby operation. The switch mode power supply has a wide-range input for AC and DC networks, whereby plug-in terminals support easy electrical connection. The large temperature range offers universal application options. Regardless of the industry, regardless of the requirement – Siemens offers reliable and efficient power supplies for any plant.
Параметры
| Width | 25.0 |
| Height | 100.0 |
| Depth | 88.0 |
| Built-in height | 200.0 |
| Power consumption | - |
| Built-in width | 25.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC/DC |
| Power output | 24.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Spring clamp connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 12 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | 230 |
| Rated supply voltage at AC 60 Hz | 120 |
| Rated supply voltage at DC | 120 |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 2 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 2.0 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
