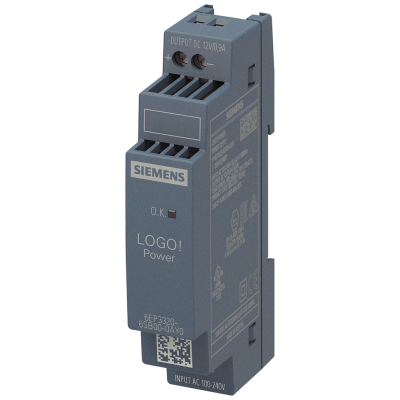

Power supply LOGO!Power, single-phase 12 V DC/1.9 A
49.61€
Включая НДС
Артикул: 6EP3320-6SB00-0AY0
LOGO!POWER 12 V / 0.9 A, стабилизированный блок питания, вход: ~100-240 В, выход: =12 В / 0.9 A The miniature LOGO!Power power supply units in the same design as the LOGO!8 modules offer great performance in the smallest of spaces. The high degree of efficiency across the entire load range and the low power loss in no-load operation ensure efficient operation. The wide-range input for single-phase supply systems and for DC power networks as well as the power reserve when switching on capacitive loads satisfy the requirements of numerous applications. The large temperature range and extensive certifications make them suitable for universal use. The reliable power supplies with their flat, stepped-profile enclosure can be integrated extremely flexibly, for example in distribution boards. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
Параметры
| Width | 18.0 |
| Height | 90.0 |
| Depth | 53.0 |
| Built-in height | 130.0 |
| Power consumption | - |
| Built-in width | 18.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC/DC |
| Power output | 10.8 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Да |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Да |
| 1st secondary output voltage | 12 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Нет |
| Rated supply voltage at AC 50 Hz | 240 |
| Rated supply voltage at AC 60 Hz | 100 |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 0.9 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 0.9 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
