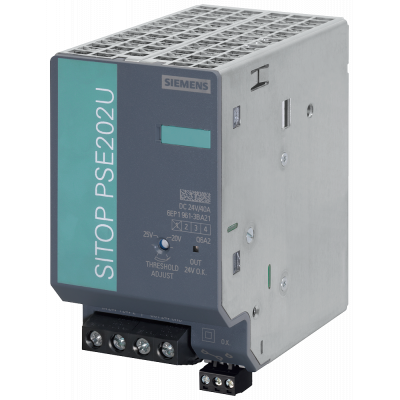

Redundancy module SITOP PSE202U, 24 VDC/40 A
120.84€
Включая НДС
Артикул: 6EP1961-3BA21
SITOP PSE202U, МОДУЛЬ РЕЗЕРВИРОВАНИЯ ВХОД/ВЫХОД: =24 В/40 A, МОЖЕТ БЫТЬ ИСПОЛЬЗОВАН ДЛЯ СОВМЕСТНОЙ РАБОТЫ ДВУХ БЛОКОВ ПИТАНИЯ SITOP С МАКСИМАЛЬНЫМ ВЫХОДНЫМ ТОКОМ 20 A ДЛЯ КАЖДОГО The SITOP PSE202U redundancy modules are the optimal addition to all 24 V power supplies to provide additional protection against a failure of the 24 V supply. The redundancy module decouples two 24 V power supplies of the same type up to a 20 A output current each, so that if one power supply fails, continued supply of the loads is ensured by the second power supply. In addition, a signal contact sends a signal, which can be evaluated by a controller, a PC or a control system. The redundancy modules also enable power supplies of the same type to be connected in parallel in order to increase the power. This also provides redundancy. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
Параметры
| Width | 70.0 |
| Height | 125.0 |
| Depth | 120.0 |
| Built-in height | 225.0 |
| Power consumption | - |
| Built-in width | 70.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | DC |
| Power output | - |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | - |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Нет |
| Rated supply voltage at AC 50 Hz | - |
| Rated supply voltage at AC 60 Hz | - |
| Rated supply voltage at DC | 24 |
| Short-circuit-proof | - |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 40 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 40.0 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
