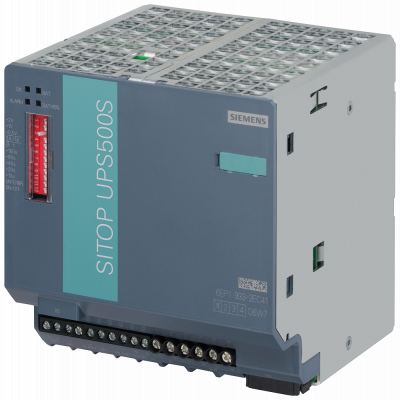

Uninterruptible power supply SITOP UPS500S 2.5 kW, 24 V DC/15 A with USB

SITOP DC-UPS 15 CAPACITOR, БАЗОВОЕ УСТРОЙСТВО ИБП С 2,5 КВТС, ВХОД: =24 В, ВЫХОД =24 В/15 A, IP 20, 0-60 C, С USB-ИНТЕРФЕЙСОМ The SITOP UPS500S with 100% maintenance-free capacitors is the optimal addition to all 24 V power supplies. It provides buffering for brief power failures over minutes. The time is generally sufficient, for example, to safely shut down PC-based automation systems or to visualize and archive operating data when extended power failures occur. The USB interface and a free software tool enable easy communication with the PC. The capacitors themselves have a very long service life even at very high temperatures and can be used in ambient temperatures up to 60 °C. No maintenance or replacement of the energy storage unit is necessary, which means that the DC UPS pays for itself after just a short time. And because the capacitors emit no gas, there is no need for control cabinet air extraction. Short charging times quickly restore the buffer readiness after a power failure. The UPS500S for rail mounting can be expanded with SITOP PSU501S expansion modules (maximum of 3) to extend the buffer time.

Параметры

Width	120.0
Height	125.0
Depth	125.0
Weight	1.0
Voltage type	DC
Transition time for full load	0.05
Network-management	Нет
Construction type	-
Potential free switch contact	-
Input voltage	24
Output voltage	24
SNMP	Нет
USV- technology	Offline
Type of interface	USB
Primary frequency	-
Secondary frequency	-
Number of phases secondary	-
Number of phases primary	-
Auto shut down function	-
Max. voltage distortion output (linear load)	-
Output power factor	-
Overall efficiency	-
Efficiency in eco-mode	-
Input connection	-
Number of output connections C13	-
Number of output connections C19	-
Number of output connections with protective contact (SCHUKO)	-
Number of output connections fixed connection	-
Output effective power	360.0
Output apparent power	-
